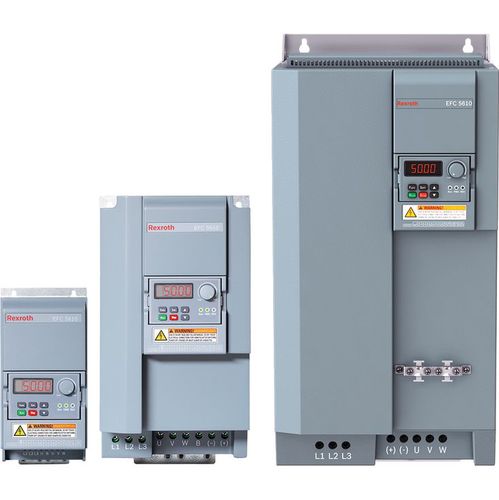

vector control frequency converter
EFC5610 series

{{requestButtons}}

Characteristics

  • Type:

    vector control

  • Power:

    Max.: 90,000 W

    Min.: 400 W

  • Current:

    Max.: 10 A

    Min.: 2 A

  • Output frequency:

    50 Hz, 60 Hz

Description


Power range 1 x AC 230 V 0.4 kW to 3 x AC 400 V 90.0 kW
Use with permanent magnet motors
Integrated brake chopper and mains filter
Integrated operating panel for simple, fast commissioning
Expandability through I/O and fieldbus modules


EFC 5610 is a universal, low-cost frequency converter for reliable speed control and demand-oriented energy supply. V/f and vector control, easy installation and commissioning as well as a power range of 0.4 to 18.5 kW enable a wide range of applications. In a power range up to 18.5 kW the powerful SVC vector control provides an optimum torque curve and high starting torque for specific special requirements.
