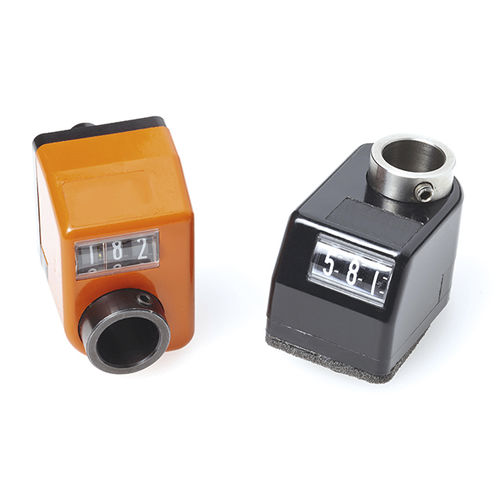

Position indicator K600

3-digithollow-shaft

Materials: (1-2) Numerator case: Reinforced polyamide. Oils and greases resistant. (3) Fixing grub screw: K600: Steel C45 quality. K600CIN: Stainless steel, (Aisi 304). (4) Shaft bush connector: K600: Automatic steel. K600CIN: Stainless steel, (Aisi 303). (5) Windows: Polymethylmethacrylate (PMMA). (6) Numbered rings: Polyamide. Surface: (1-2-6) Glossy. (4) Smooth by fine turning. (5) Glossy, Ehnanced reading effect. Colour: Numerator case cover: Black (RAL 9011 code 01) (2) Numerator case: K600: Black (RAL 9011 cod. 01). K602: Orange (RAL 2004 cod. 02). K603: Grey (RAL 7035 cod. 13). (3) Fixing grub screw: K600: Blac-oxidated. K600CIN: Natural. (4) Connection bush: K600: Black-oxide. K600CIN: Natural. (5) Windows: Transparent. (6) Numbered rings: Black ring with white number. Numbered rings characters: White pad printed. Character height about 4 mm. Gear reduction ratio (GR): The reduction ratio establishes that number must appear on the counter after making a full turn (360°). For example, by choosing a reduction ratio of 15, after one revolution on the window you will see the 015 number. The position of the decimal will help demultiplex the measure, because choosing one decimal place, the 015 becomes 01,5. Mounting / reading position (PL): The numerator block can be applied in four different positions. Please choose the most suitable for your application: P1 = Vertical with numbers on upper part, P2 = Vertical with numbers on vertical, P3 = horizontal with numbers in inclined wall, P4 = horizontal with numbers in vertical wall.
