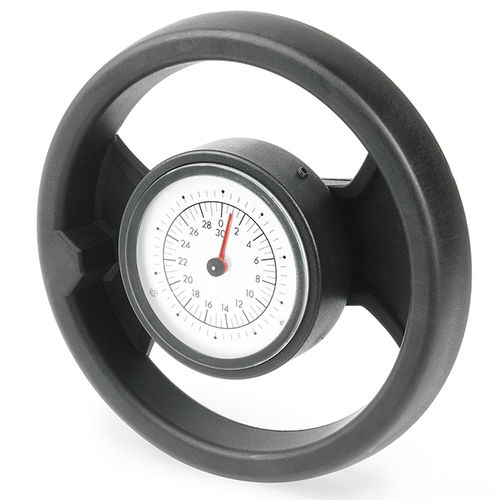

operating handwheel / spoked / with indicator
spoked, with indicator
129 mm, 159 mm, 198 mm, 252 mm, 346 mm (5.08 in)
32 mm, 40 mm, 51 mm, 55.5 mm, 67.5 mm (1.26 in)
Reinforced and stabilised polyamide. Oils and greases resistant.
Black (RAL 9011).
Zinc plated steel insert with right through smooth bore, (bore tolerance H10).
(*) Hollow underneath hub.
Gravitational indicator with 50/80mm. diameter (models K650-K660). The indicator can only be used in a vertical position (horizontal machine axis). The indicator is to be purchased separately. For more information see article K650.
Fix the indicator with a threaded grub screw M04 (not supplied) inserted in the bore d4.
The handwheel is fixed to the shaft using a grub screw M05 (not supplied) to be inserted on radial bore (d2).
