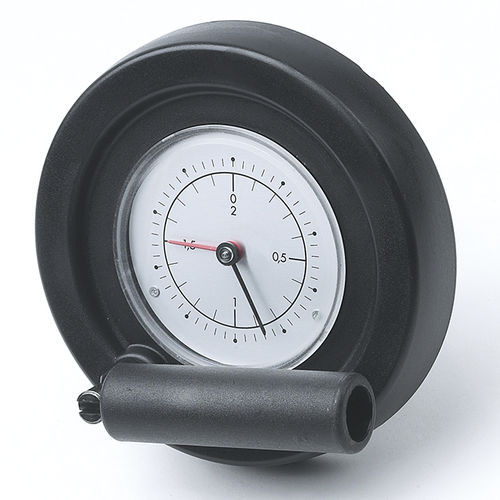

Control handwheel K904 seriessolidwith indicatorswing-handle
Add to favorites
Compare this product
Characteristics
- Function
- control
- Configuration
- solid, with indicator, swing-handle
- Material
- polyamide
- Outside diameter
Max.: 199 mm
(7.83 in)Min.: 86 mm
(3.39 in)- Bore size
32 mm, 40 mm, 42 mm, 46 mm
(1.26 in, 1.57 in, 1.65 in, 1.81 in)
Description
Materials:
Reinforced and stabilised polyamide.
Oils and greases resistant.
Surface:
Satin.
Colour:
Black (RAL 9011).
Inserts:
Zinc plated steel insert with right through smooth bore, (bore tolerance H10).
Lateral insert:
Brass threaded right trough bored insert.
Side handle:
Revolving and folding handle article M136.
Mountable indicator
Use gravity indicators models K650 or K660. The indicator can only be used in a vertical position (horizontal machine axis). The indicator and its fixing grub screw (d7) are to be purchased separately. For further information on the indicators, see the pages relating to articles K650 and K650.
(*) With the adapter KS08050.T01 you can mount the indicator K650080.
Fixing:
For fixing system, or execution of keyway or square holes, please refer to the technical notes attached to the catalogue.
