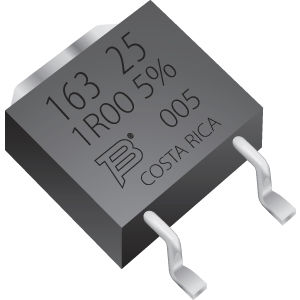

Thick-film resistor PWR series

high-powersurface mountedcompact

Bourns offers a broad range of PWR-series high power thick film resistors with standard packages, surface mounted TO-163 and TO-263 (DPAK and D2PAK) and radial leaded through hole TO-220 and TO-247. These compact packages which are used as standard by semiconductor manufacturers offers space savings to designers and various additional standardized off-the-shelf accessories are available on the market such as thermal and mounting devices. Available features High power rating Low inductance Resistor electrically isolated from the backplate Suitable for most types of soldering processes RoHS compliant* Applications Power supplies Motor drives Test and measurement Rectifiers Capacitor discharging Snubber circuits Current limiting Heater
