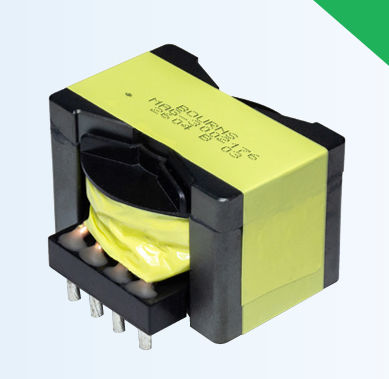

Power transformer MAG-3002176encapsulatedsolarfor inverters
Add to favorites
Compare this product
Characteristics
- Type
- power
- Configuration
- encapsulated
- Applications
- solar, for inverters
- Electrical characteristics
- high-frequency
- Norms
- RoHS
- Electric power
600 W
- Secondary voltage
Min.: 60 MV
Max.: 230 MV
Description
Bourns® Model MAG-3002176 is a power transformer developed for high-frequency bidirectional GaN single-stage converters for battery storage and renewable energy applications. Made for the Texas Instruments’ TIDA-010954 GaN-based 600 W cycloconverter reference design, it is designed for high efficiency operating at 300-600 kHz with a maximum DC voltage of 60 VDC on the DC side and 230 VAC on the AC side.
