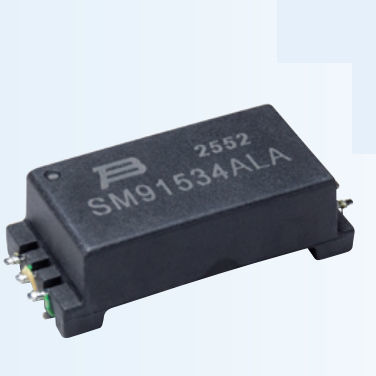

Isolation transformer SM91534ALA

encapsulatedfor automotive applicationsfor renewable energy

Hi-Pot: 6400 VDC Working voltage up to 1500 VDC Auto pin termination UL recognized: E515965 per UL62368-1 Reinforced insulation IEC62477-1:2022 &IEC62368-1:2018 Creepage distance >16.6 mm, pollution degree 2, material group CTI I Clearance distance >16.6 mm, Overvoltage Category II, up to 5000 m above sea level Impulse Voltage: 12 kV, 1.2/50 μs AEC-Q200 and RoHS compliant* Applications Battery Management Systems (BMS) in hybrid and electric powertrain systems Energy storage battery packs with Battery Management Systems Sustainability High pallet density for lower CO2 Eco-Logistics-friendly packing High efficiency, low power loss Product Overview This single-channel reinforced insulation BMS signal transformer integrates common mode chokes to provide noise rejection and isolation in BMS communication circuits with Hi-Pot isolation voltage up to 6400 VDC and UL recognition. The Model SM91534ALA suitable for the use inside 1500 V energy storage systems and electric vehicles and automated assembling produces costeffective and high quality components.
