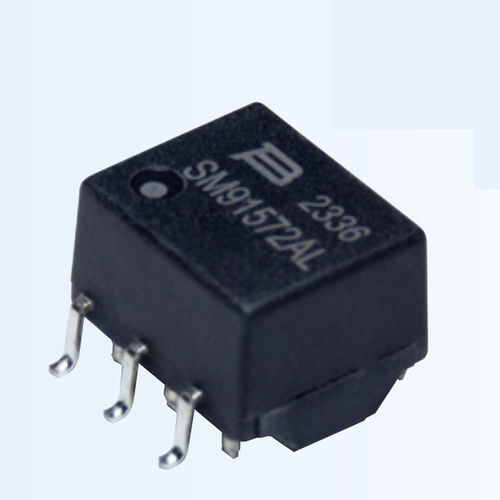

Isolation transformer SM91572AL

dryfor automotive applicationsfor renewable energy

This single-channel functional insulation BMS signal transformer integrates common mode chokes to provide noise rejection and solid isolation in BMS communication circuits with Hi-Pot isolation voltage up to 3,000 VAC Features Pin auto-termination Hi-Pot: 3000 VAC Working voltage: 1000 VDC Single channel with integrated choke Developed for use with Analog Device’s LTC6804-1/681X, NXP’s MC33771/ 33772 and TI’s BQ79616 AEC-Q200 and RoHS compliant* Functional insulatio Applications Battery Management Systems (BMS) in hybrid and electric powertrain systems Energy storage battery packs with Battery Management Systems Sustainability Small size reduces material use High pallet density for lower CO2 Eco-Logistics-friendly packing High efficiency, low power loss
