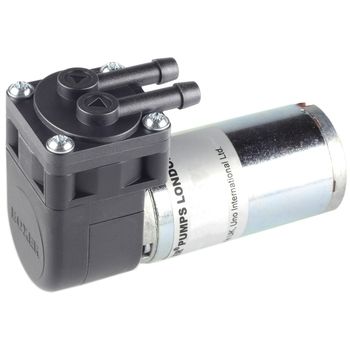

Water pump 3K DCdiaphragmstationary
Add to favorites
Compare this product
Characteristics
- Fluid
- water
- Operation
- DC
- Technology
- diaphragm
- Mobility
- stationary
- Domain
- industrial
- Applications
- flow control
- Voltage
- 24 V, 12 V
- Protection level
- robust
- Other characteristics
- standard, double, flow, combined, miniature, PWM
- Flow
1.5 l/min, 1.9 l/min
(0.39626 us gal/min, 0.50193 us gal/min)- Pressure
2 bar
(29.008 psi)- Power
Max.: 14.5 kW
(19.71 hp)Min.: 3.3 kW
(4.49 hp)- Fluid temperature
Max.: 100 °C
(212 °F)Min.: 50 °C
(122 °F)- Length
111 mm, 112 mm
(4 in, 4 in)- Width
41.7 mm, 41.8 mm
(1.64 in, 1.65 in)- Height
64 mm
(2.52 in)- Weight
385 g
(13.58 oz)
Description
The 3MD series is the new compact version of the double headed 3K pump. Highest quality con-rod and motor bearings ensure lowest power consumption and, combined with slow speed, maximum operational life. This series additionally offers a unique detachable motor construction allowing contaminated heads to be economically exchanged.
The 3MD series is offered with 2 different motors: quality DC and brushless DC.
› Robust / long life
› Detachable motor
› Single (3K) and Quad (3MQ) versions are also available
Gas versions of this series is available with 3K, 3KD and 3KQ.
Fixing brackets are included as standard.
Flow control is available in combination with PWM Flow Controller.
Return to Miniature Diaphragm Pumps for Liquid range.
