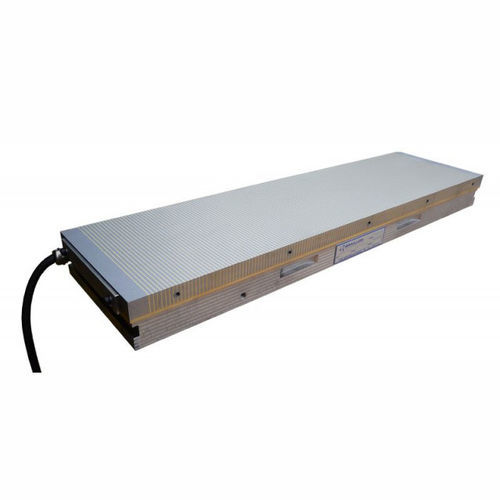

Rectangular électromagnetic chuck 10.24

for grindingfor metrology applicationsfor turning

Heavy duty constructionWaterproof constructionLow magnetic field . Multicoil electromagnetic system . Parallel small pole pitch throughout the whole width of the chuck . Uniform and strong magnetic field over the whole surface Included with purchase: - 3, 6 or 10 meter long cable (length to be chosen) on the short side - Long and short side end stops - Clamps Use :GrindingEDMmetrology Nominal force :120 N/cm²Pole pitch :5 mm1 mm of brass4 mm of steelAdmissible wear of top plate :8 mmMagnetic field height :5 mmVoltage :110 VDC Options :- Other sizes on request - Electro-permanent execution - Through holes to fix the chuck on the machine table - Cable connection on the long side - Compressed air holes
