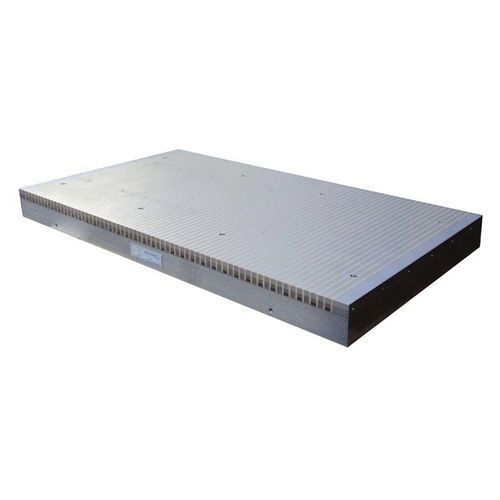

Electro-permanent magnetic chuck 10.23

rectangularfor grindingfor EDM

Heavy duty constructionWaterproof construction . Electropermanent system . Parallel transversal pole pitch throughout the whole width of the chuck . Uniform and strong magnetic field . Extremely stable construction Scope of delivery: - 3, 6 or 10 meter long cable (length to be chosen) on the short side - Long and short side end stops - Clamps Use :GrindingEDMMachining Nominal force :110 N/cm²Pole pitch :13/18/25 mmAdmissible wear of top plate :8 mmMagnetic field height :5/8/10 mmVoltage :340 VDC Options :- Other sizes on request - Electromagnetic execution - Through holes to fix the chuck on the machine table - Cable connection on the long side - Compressed air holes
