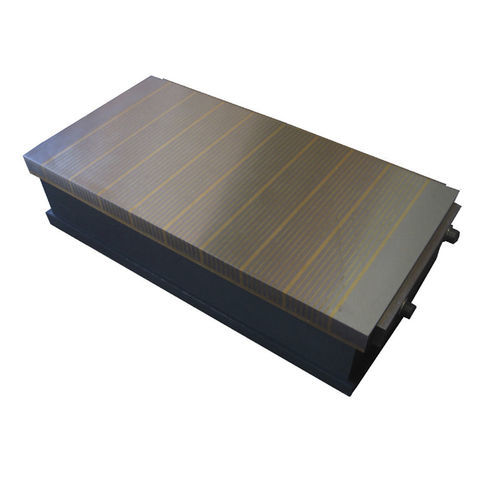

Fine pole electro-permanent magnetic chuck 10.21

rectangularfor grinding

High holding powerTwin magnetic systemHeavy duty constructionWaterproof construction . Multicoil electromagnetic system . Uniform and strong magnetic field over the whole surface Included with purchase: - 3, 6 or 10 meter long cable (length to be chosen) on the short side - Long and short side end stops - Clamps Use :Grinding Nominal force :125 N/cm²Pole pitch :5 mm1 mm of brass4 mm of steelAdmissible wear of top plate :8 mmMagnetic field height :8 mmVoltage :110 VDC Options : - Other sizes on request - Through holes to fix the chuck on the machine table - Cable connection on the long side - Compressed air holes
