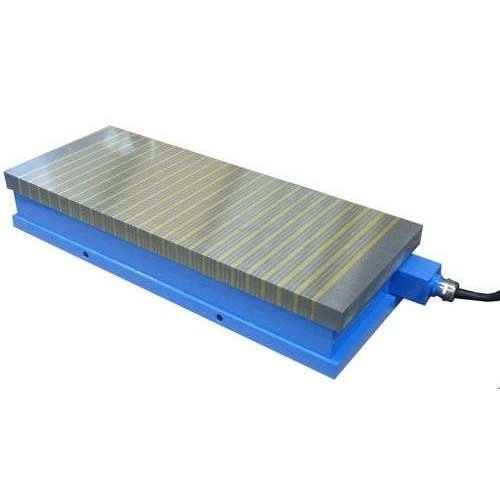

Electro-permanent magnetic chuck 10.20

rectangularfor grindingfor EDM

Electro-Permanent magnetic chuck type BLU Heavy duty & compact constructionAttractive prices ! - Uniform magnetic field - Parallel pole pitch throughout the whole width of the chuck - Corresponding Control Unit and the Remote Control to be ordered separately: See 50.01.BUR and 50.10.T10 Included with purchase: - 3, 6 or 10 meter long cable (length to be chosen) - Long and short side end stops - Clamps Use :GrindingEDM Nominal force :115 N/cm²Pole pitch :19 mmAdmissible wear of top plate :8 mmMagnetic field height :5 mmVoltage :340 VDC Options :- Other sizes on request - Through holes to fix the chuck on the machine table - Cable connection on the long side - Compressed air holes
