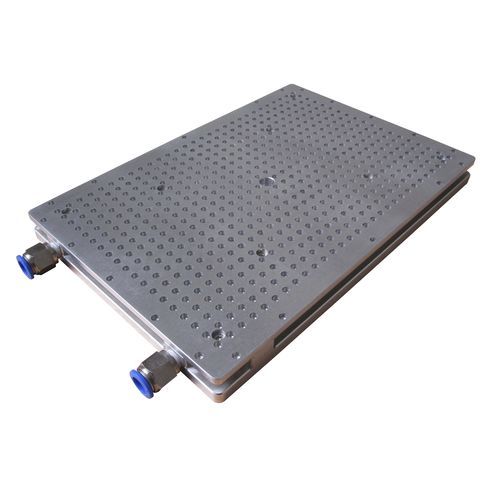

Grid vacuum chuck 30.05

workpiecefor grindingfor milling

Heavy duty constructionEffective . Aluminium vacuum chuck with holes . Standard height 34 mm . Distance between the holes 10 x 10 mm . All holes not covered by the workpiece should also be covered . The required complementary equipment to be ordered, see articles: 30.11 / 30.12 /30.14 / 30.18 / 30.15 . Corresponding vacuum pump: 30.10 / 30/20 Included with purchase: - Air hose connector - End stops Use :MillingMachiningPlanningEngraving Parallelism :0,02 mmFlatness :0,02 mm Options :- Another position of air connection - Multiple independent zones - Special execution, palletizing - With steel base plate for use on magnetic chucks
