Grid vacuum chuck 30.01.5 series
for grindingfor millingfor metrology

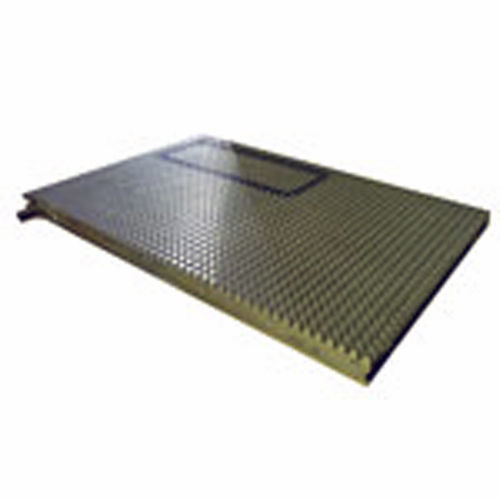

Grid vacuum chuck - 30.01.5 series - Braillon Magnetics - for grinding / for milling / for metrology
Grid vacuum chuck - 30.01.5 series - Braillon Magnetics - for grinding / for milling / for metrology
Grid vacuum chuck - 30.01.5 series - Braillon Magnetics - for grinding / for milling / for metrology - image - 2
Grid vacuum chuck - 30.01.5 series - Braillon Magnetics - for grinding / for milling / for metrology - image - 3
Grid vacuum chuck - 30.01.5 series - Braillon Magnetics - for grinding / for milling / for metrology - image - 4
Grid vacuum chuck - 30.01.5 series - Braillon Magnetics - for grinding / for milling / for metrology - image - 5
Add to favorites
Compare this product
Go to the Braillon Magnetics website for more information

Characteristics

Specifications
grid
Applications
for grinding, for milling, for engraving, for metrology, for polishing, for machining
Length

300 mm, 400 mm, 600 mm, 800 mm, 1,000 mm
(11.8 in, 15.7 in, 23.6 in, 31.5 in, 39.4 in)

Width

200 mm, 300 mm, 400 mm, 500 mm
(7.87 in, 11.81 in, 15.75 in, 19.69 in)

Thickness

32.5 mm, 48 mm
(1.28 in, 1.89 in)

Description

In high density aluminium High holding power Heavy duty construction Safe Vacuum table grid for milling . Clamping slot . 10 meters of seal 2 ranges of plates available for clamping non-magnetic parts: VRS-R12AL: grid 12.5 mm Aluminum VRS-R25AL: grid 25 mm Aluminium Parallelism : 0.02/100 mm Flatness : 0.02/100 mm
