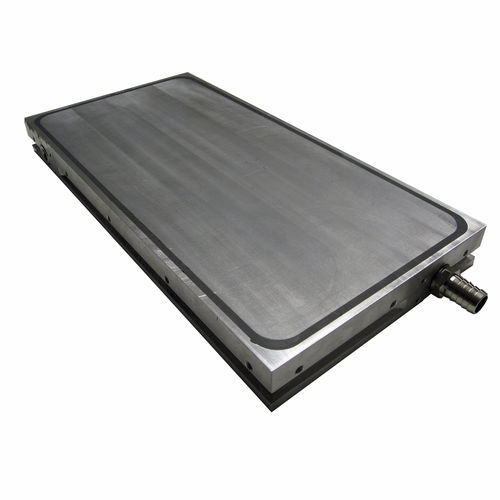

Metalworking vacuum table 30.03 series
for grindingfor millingfor drilling

Metalworking vacuum table - 30.03 series - Braillon Magnetics - for grinding / for milling / for drilling
Metalworking vacuum table - 30.03 series - Braillon Magnetics - for grinding / for milling / for drilling
Metalworking vacuum table - 30.03 series - Braillon Magnetics - for grinding / for milling / for drilling - image - 2
Metalworking vacuum table - 30.03 series - Braillon Magnetics - for grinding / for milling / for drilling - image - 3
Metalworking vacuum table - 30.03 series - Braillon Magnetics - for grinding / for milling / for drilling - image - 4
Metalworking vacuum table - 30.03 series - Braillon Magnetics - for grinding / for milling / for drilling - image - 5
Metalworking vacuum table - 30.03 series - Braillon Magnetics - for grinding / for milling / for drilling - image - 6
Add to favorites
Compare this product
Go to the Braillon Magnetics website for more information

Characteristics

Applications
for metalworking, for milling, for drilling, for grinding, for machining, for metrology, for polishing
Length

Max.: 1,000 mm
(39.4 in)

Min.: 200 mm
(7.9 in)

Width

Max.: 500 mm
(19.69 in)

Min.: 100 mm
(3.94 in)

Thickness

38 mm, 48 mm
(1.5 in, 1.89 in)

Description

Heavy duty construction Innovative . Sintered metal type vacuum chuck . Ideal for machining of thin elements (below 0.5 mm thick) . Suitable for non-magnetic materials like glass, ceramics, plastic . The required complementary equipment to be ordered, see articles: 30.11 / 30.12 /30.14 / 30.18 / 30.15 . Corresponding vacuum pump: 30.10 / 30/20 Included with purchase: - Air hose connector - End stops Use :GrindingMillingmetrologyDrillingContouringMachiningPolishing Parallelism :0.02/100 mmFlatness :0.02/100 mm Options :- Another position of air connection - Multiple independent zones - Special execution, palletizing - With steel base plate for use on magnetic chucks

VIDEO

Catalogs

Go to the Braillon Magnetics website for more information

Other Braillon Magnetics products

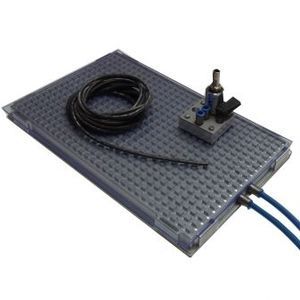

Vacuum rectangular and circular tables
