Circular vacuum chuck 30.06 series
for turning applicationsfor grinding

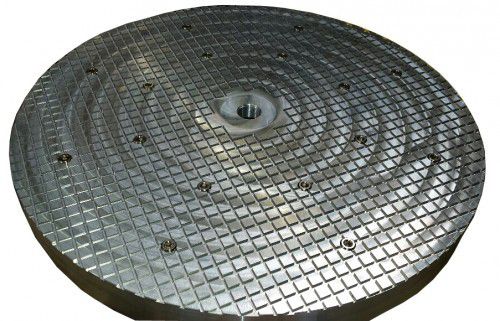

Circular vacuum chuck - 30.06 series - Braillon Magnetics - for turning applications / for grinding
Circular vacuum chuck - 30.06 series - Braillon Magnetics - for turning applications / for grinding
Circular vacuum chuck - 30.06 series - Braillon Magnetics - for turning applications / for grinding - image - 2
Circular vacuum chuck - 30.06 series - Braillon Magnetics - for turning applications / for grinding - image - 3
Circular vacuum chuck - 30.06 series - Braillon Magnetics - for turning applications / for grinding - image - 4
Circular vacuum chuck - 30.06 series - Braillon Magnetics - for turning applications / for grinding - image - 5
Add to favorites
Compare this product
Go to the Braillon Magnetics website for more information

Characteristics

Specifications
circular
Applications
for grinding, for turning applications
Thickness

38 mm
(1.5 in)

Diameter

Min.: 100 mm
(3.94 in)

Max.: 600 mm
(23.62 in)

Description

Rugged constructionEffectiveInnovativeSureIn high density aluminium . Concentric grooves . Machining for clamping (according to specification) . 5 meters seal . 1 ON/OFF system . Center succion 2 version are available to clamp non magnetic pieces: VRFC10AL: grid of 10 mm in aluminium VRFC12AL: grid of 12.5 mm in aluminium Use : ControlGrindingTurning Parallelism : 0.02/100 mm Flatness : 0.02/100 mm Options :Other dimensions Special machining Machining for palettizing machines Turning seal With base plate in steel to clamp on magnetic chuck
