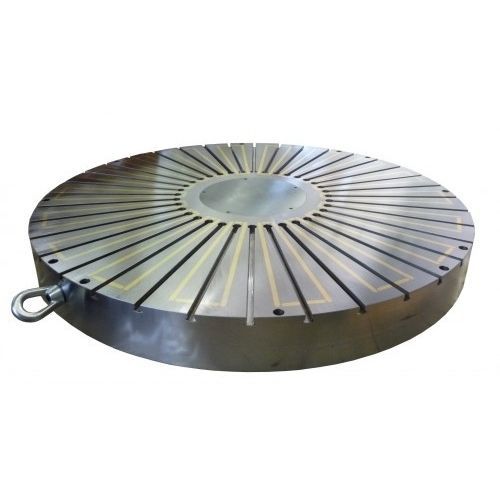

Circular électromagnetic chuck 11.10 series

radialfor grindingfor milling

Electromagnetic Circular Chuck type ERC High holding powerHeavy duty constructionAttractive prices ! . Electromagnetic radial pole circular chuck with high holding force . Space between the poles filled with epoxy resin or with brass (optional) . For ring-shaped workpieces . Corresponding Control Unit and the Remote Control to be ordered separately: See 50.04.BUE.230 / 50.05.T.BUET.230/400 and 50.10.T10 Included with purchase: - Electric connection at the rear of the chuck - With slip ring assembly either integrated into the chuck or separate (to be fitted to the machine spindle) Use : Grinding Turning Nominal force : 120 N/cm² Admissible wear of top plate : 8 mm Voltage : 110 VDC Options : - Other sizes and voltages by request - T-slots in each pole - Through hole in the middle - Customized raising pole shoes - Fitting adaptors to: . Morse cone 3 or 4 . Short taper flanges for: A2 DIN 55026 Bayonet DIN 55027 Camlock DIN 55029
