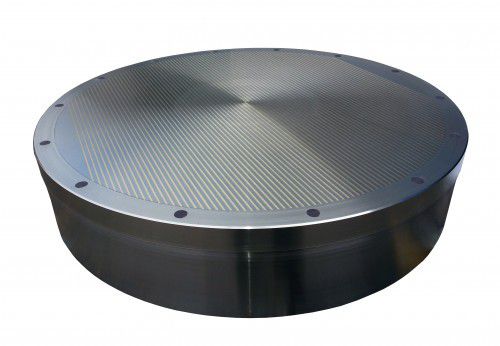

Circular magnetic chuck 11.17

electro-permanentfor grindingfor turning

High holding powerHeavy duty construction . Electropermanent circular chuck with parallel poles . For ring-shaped workpieces (including thin rings) . Suitable for simultaneous machining of several workpieces . The smallest workpiece thickness: 4 mm . Corresponding Control Unit and the Remote Control to be ordered separately: See 50.03.BUP.230/400 and 50.10.T10 Included with purchase: - Electric connection at the rear of the chuck - With slip ring assembly either integrated into the chuck or separate (to be fitted to the machine spindle) Use :GrindingTurning Nominal force :100 N/cm²Pole pitch :5 mm1 mm of brass4 mm of steelAdmissible wear of top plate :8 mmMagnetic field height :5 mmVoltage :340 VDC Options :- Other sizes and voltages on request - Through hole in the middle - Through holes to fit the chuck on the machine table - Fitting adaptors to: . Morse cone 3 or 4 . Short taper flanges for: A2 DIN 55026 Bayonet DIN 55027 Camlock DIN 55029
