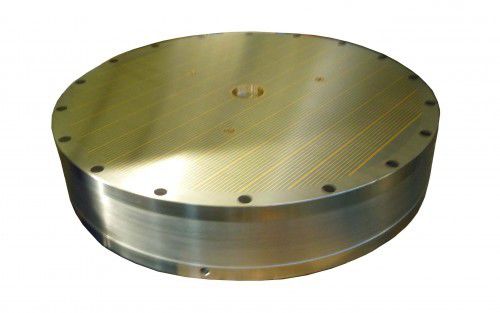

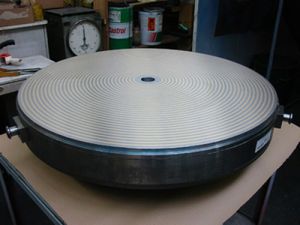

Circular électromagnetic chuck 11.12 series

for grindingfor turning

Electromagnetic Circular Chuck type ERP High holding powerHeavy duty construction . Electromagnetic circular chuck with parallel poles . For ring-shaped workpieces (including thin rings) . Suitable for simultaneous machining of several workpieces . The smallest workpiece thickness: 4 mm . Corresponding Control Unit and the Remote Control to be ordered separately: See 50.04.BUE.230 / 50.05.T.BUET.230/400 and 50.10.T10 Included with purchase: - Electric connection at the rear of the chuck - With slip ring assembly either integrated into the chuck or separate (to be fitted to the machine spindle) Options : - Other sizes and voltages on request - Through hole in the middle - Through holes to fit the chuck on the machine table - Fitting adaptors to: . Morse cone 3 or 4 . Short taper flanges for: A2 DIN 55026 Bayonet DIN 55027 Camlock DIN 55029
