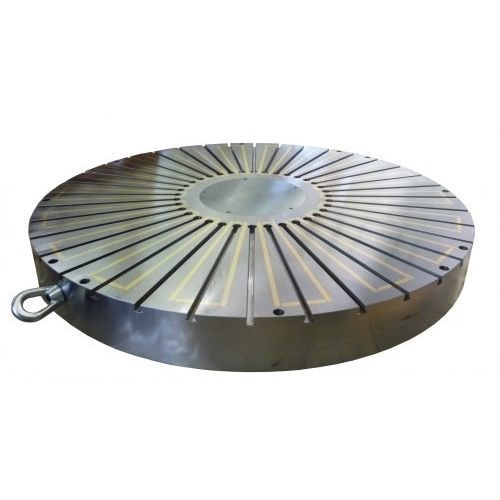

Circular magnetic chuck 11.14 series

electro-permanentradialfor grinding

Electro-permanent Circular Magnetic Chuck type EPERC High holding powerHeavy duty construction . Electropermanent radial pole circular chuck with high holding force . Space between the poles filled with brass . For ring-shaped workpieces . Suitable for grinding and turning operations . Corresponding Control Unit and the Remote Control to be ordered separately: See 50.03.BUP.230400/480 and 50.10.T10 Included with purchase: - Electric connection at the rear of the chuck - With slip ring assembly either integrated into the chuck or separate (to be fitted to the machine spindle) Use : Grinding Turning Nominal force : 140 N/cm² Admissible wear of top plate : 8 mm Voltage : 340 VDC Options : - Other sizes and voltages on request - T-slots in each pole - Through hole in the middle - Customized raising pole shoes - Fitting adaptors to: . Morse cone 3 or 4 . Short taper flanges for: A2 DIN 55026 Bayonet DIN 55027 Camlock DIN 55029
