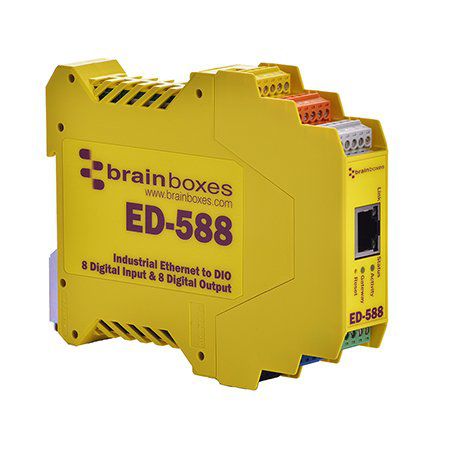

Digital I O module ED-588
EthernetRS485TTL

digital I O module
digital I O module
digital I O module
digital I O module
digital I O module
Add to favorites
Compare this product


Characteristics

Signal type
digital
Bus
Ethernet, RS485, TTL, Modbus
Mounting
DIN rail

Description

8 Digital Inputs, 8 Digital Outputs and an RS485 Gateway Port Control any input or output from TTL to high voltage high current industrial devices Factory floor process control and automation, Integrated DIN rail mount Supports simple ASCII or industry standard Modbus TCP -30°C to +80°C Temperature range Software APIs for Visual Basic, C# and more Ethernet to DIO device: 8 non-isolated digital input channels and 8 digital output channels. Outputs each group of 4 lines has its own common rail. Powerful ARM 80 MHz, 32 Bit CPU. Offers robust and intelligent 'control side' devices that provide the interface to systems on the 24V factory floor environment, commonly referred to as 'process side'. The device can be controlled over TCP/IP using the Modbus TCP protocol or simple ASCII commands. Additionally Brainboxes supply a suite of APIs and sample code to communicate with the device using Microsoft .NET framework Visual Basic, C#, C++, Java, Javascript, PHP and more. The device and be configured and secured from a web browser. The device can be installed as a COM Port on a Windows PC to give complete backwards compatibility essential for legacy applications.
