Isolation transformer T3M series encapsulatedindustrialsafety
Add to favorites
Compare this product
Characteristics
- Type
- isolation
- Configuration
- encapsulated
- Applications
- industrial
- Other characteristics
- safety, protection
- Output power kVA
Max.: 250 kVA
(339.905289 hp)Min.: 1 kVA
(1.359621 hp)- Primary voltage
Max.: 1,000 V
Min.: 110 V
- Secondary voltage
Max.: 500 V
Min.: 24 V
- Frequency
50 Hz, 60 Hz
Description

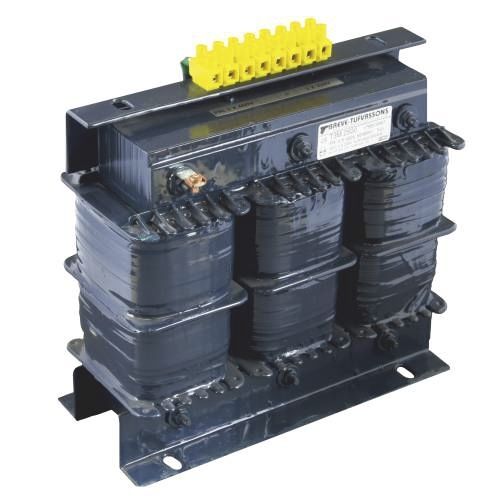

T3M SINGLE CHAMBER - THREE PHASE ISOLATING TRANSFORMERS, SINGLE CHAMBER, STANDARD
Opened build of general purpose isolating, safety transformers for building into installations and industrial or power engineering devices. This isolating, safety transformers are made with Class I insulation and protection grade IP00, maximum ambient temperature 40°C, thermal class of insulation B (130°C) or F (155°C). Depending on the size and power, winding is made of copper or aluminum. Manufactured in compliance with EN 61558/60076.
Catalogs
T3M
1 Pages
