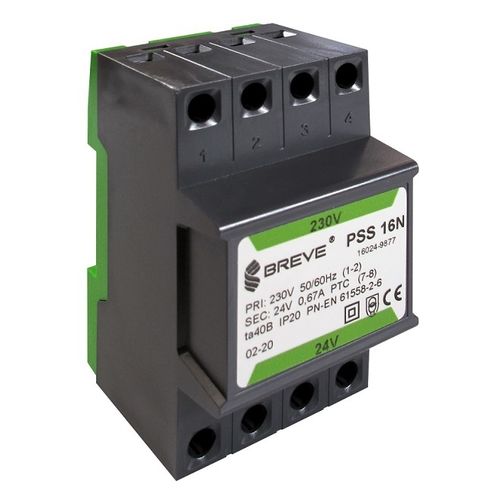

Isolation transformer PSS N series encapsulatedDIN rail mountEN61558
Add to favorites
Compare this product
Characteristics
- Type
- isolation
- Configuration
- encapsulated
- Mounting
- DIN rail mount
- Norms
- EN61558
- Other characteristics
- secondary, protection
- Output power kVA
Max.: 0.08 kVA
(0.1088 hp)Min.: 0.02 kVA
(0.0272 hp)- Primary voltage
Max.: 500 V
Min.: 110 V
- Secondary voltage
Max.: 230 V
Min.: 6 V
- Frequency
50 Hz, 60 Hz
Description
PSS N - TRANSFORMERS FOR DIN RAIL
Encased protection isolating transformers designed mainly for fitting into devices using T-35 bus. Elegant casing, featuring spring bracket significantly facilitates and speeds up attaching. This isolating transformers are made with Class II insulation and protection grade IP20. Protected against overload and short circuit on secondary with PTC. To reset the protecting device disconnect the mains for 10 seconds. Maximum ambient temperature 40°C, thermal class of insulation B (130°C). Manufactured in compliance with EN61558-2-4 and EN61558-2-6.
