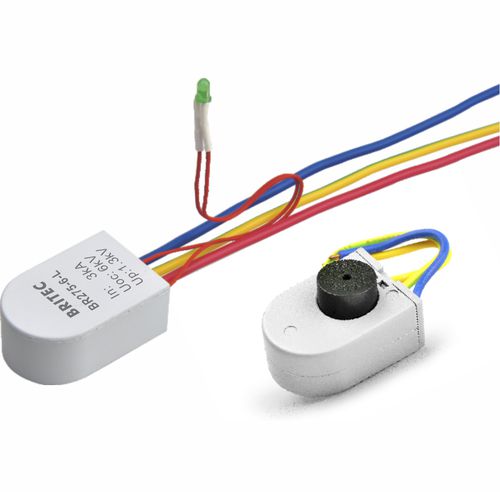

Type 3 surge arrester BR275-6class IIIfor electrical installationsremote signaling
Add to favorites
Compare this product
Characteristics
- Type
- type 3, class III
- Applications
- remote signaling, for electrical installations, for transient current protection, electronic equipment, electrical line, anti-surge, for lighting
- Other characteristics
- with fault indication, compact, varistor, gas discharge tube, fast-response, low-voltage, AC, DC, thermoplastic
- Voltage
230 V, 275 V
- Primary current
3,000 A, 6,000 A
Description
Protection class: Class III.
Build-in LED or BEEP status indication.
Rated to IP20.
Type 3 SPD according to IEC61643-11 and EN61643-11.
Features a thermally protected transient over-voltage circuit.
High Temperature Enclosure: Up to 80°C max. Surface Temperature Rating.
Application:
Designed for installation into electrical installation systems, e.g.: cable ducts and flush-mounted sockets as an additional protection.
For use in all installation systems of terminal equipment.
For all installation systems of 230 V terminal equipment.
For transient current protection.
Catalogs
BR275-6-L BR275-6-B
1 Pages
