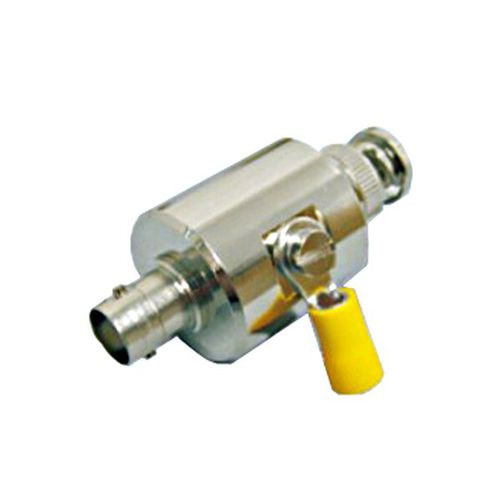

Class IEC 2 surge arrester BR-BNC-Hfor signal transmissionfor electrical installationsvideo surveillance
Add to favorites
Compare this product
Characteristics
- Type
- class IEC 2
- Applications
- electronic equipment, for electrical installations, for transient current protection, electrical line, for railway applications, for radiofrequency applications, video surveillance, anti-surge, for electrical networks, for data and telecommunication lines, for signal transmission, video signal, data center, for RF coaxial cable
- Other characteristics
- compact, coaxial, BNC, high-frequency, fast-response, low-voltage, AC/DC
- Voltage
130 V, 180 V
- Primary current
10,000 A
Description
Nominal current: 20A.
Short circuit current: up to 10kA (8/20μs).
Bandwidth: 3 Gbps.
Insertion loss: ≤0.3dB.
Designed according to IEC 61643-21 standard.
High Frequency and Low Insertion Loss.
High Reliability Protection from Excessive Voltages.
Application:
Protect electric system and on-loading electrical apparatus from thunder and instantaneous over-voltage.
It can be used for the lightning surge protection of monitoring system’s video line with BNC connector, BNC Matrix Connector, Optical Transmitter and Receiver BNC connector, Video Camera BNC connector.
The signal protection: low frequency signal protection, high-frequency signal protection etc.
It is suitable for lightning protection of wireless communication, such as Satellite Antenna/Microwave/CATV/Short Wave/Ultra Short Wave/ Mobile Communication Equipment etc.
