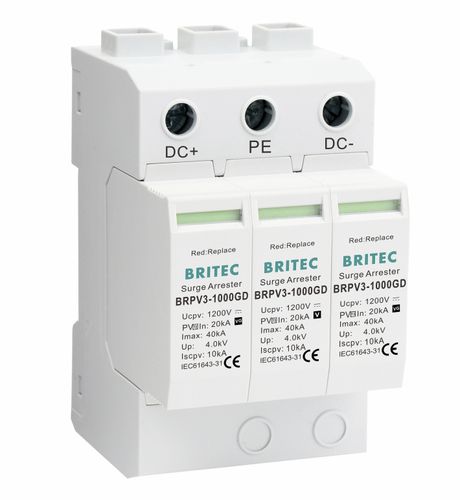

Type 2 surge arrester BRPV3-1000GDclass IIfor electrical installationsremote signaling
Add to favorites
Compare this product
Characteristics
- Type
- type 2, class II
- Applications
- for power supplies, remote signaling, for electrical installations, for transient current protection, electronic equipment, electrical line, for photovoltaïc installations, anti-surge, DC power
- Other characteristics
- varistor, with fault indication, compact, combined, screw-in, gas discharge tube, modular, fast-response, low-voltage, DC, DIN rail, plug-in, thermoplastic
- Voltage
1,000 V, 1,200 V
- Primary current
20,000 A, 40,000 A
Description
Max. discharge current with 8/20 waveform: 40kA per phase.
Conform to IEC61643-31 and EN61643-31.
Design with pluggable modules.
Status indication.
High discharge capacity via varistors and gas dischargers.
Compact equipment for photovoltaic installations.
Application:
For the protection of positive and negative busbars of photovoltaic systems against the surge effects.
For elimination of transient overvoltage that originate during atmospheric discharges or switching processes.
Protect the terminal devices in PV system from over voltage, like solar panels or inverters.
Available for 1200V DC integrated in PV string inverters or solar combiner boxes.
It also can be used for protection of wind turbine system.
