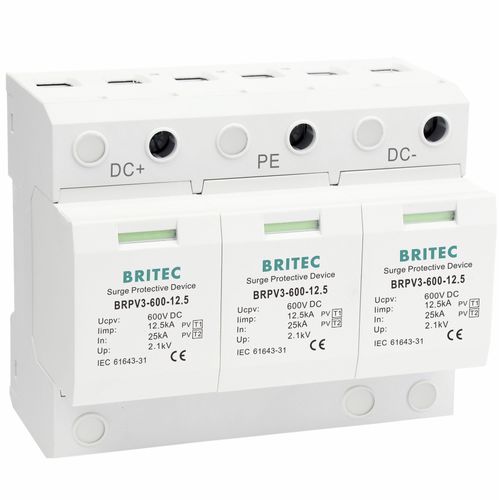

Type 1 surge protector BRPV3-600-12.5

type 2class Iclass II

Type 1+2 surge protector for photovoltaic. Lightning impulse current(10/350us) Max. continuous operating dc voltage Protection modes: (+) → PE, (-) → PE, (+) → (-). Remote signaling selectable. Conform to IEC61643-31 and EN61643-31. Application: For use in photovoltaic power supply systems For photovoltaic systems on/on buildings with external lightning protection Protect against lightning surge voltages in photovoltaic power supply network. Available as type 1 and type 2 combined lightning current and surge arresters as well as type 2 only surge arrester protective devices. Installation instruction: Mount the SPD on 35 mm DIN rail. DC surge arrester are designed to protect equipment connected to DC power supplies from lightning surges. The SPD is placed in parallel between the energized conductors and ground.
