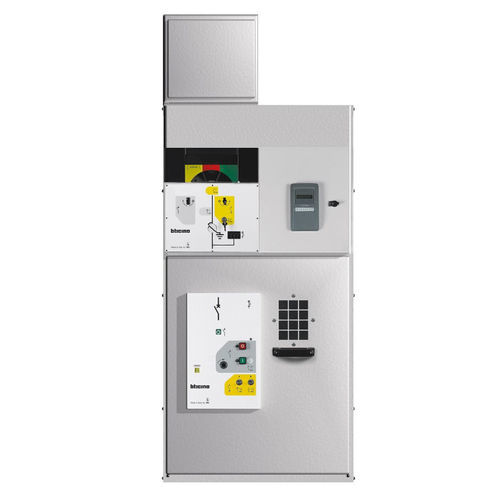

Protection panel AABBTV15
Add to favorites
Compare this product
Description
Product overview
Electrical panel for transformer protection equipped with an SF6-insulated disconnector and a vacuum circuit-breaker. Cable entry from the top and cable exit at the bottom. Designed for 15 kV medium-voltage systems and incorporating an undervoltage release and a voltage transformer (VT) for protection and measurement functions.
Main features
Technical specifications
Electrical panel for transformer protection equipped with an SF6-insulated disconnector and a vacuum circuit-breaker. Cable entry from the top and cable exit at the bottom. Designed for 15 kV medium-voltage systems and incorporating an undervoltage release and a voltage transformer (VT) for protection and measurement functions.
Main features
- SF6-insulated disconnector
- Vacuum circuit-breaker
- Top cable entry / bottom cable exit
- Undervoltage (minimum voltage) release
- Voltage transformer (VT) implemented
- Rated voltage: 15 kV
Technical specifications
- Brand: BTicino
- Series: QMT
- Rated voltage: 15 kV
- Height: 1.95 m
- Width: 750 mm
- Depth: 840 mm
Catalogs
AABBTV15
1 Pages
