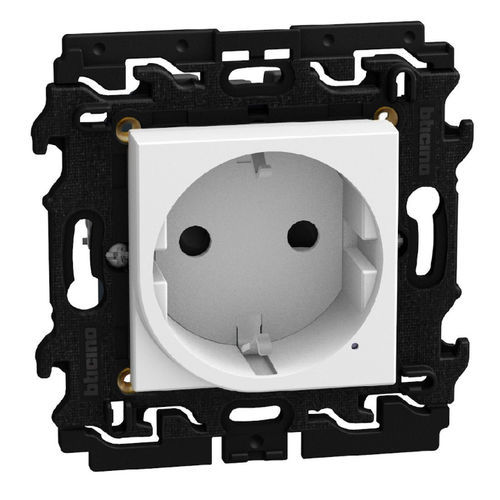

Built-in electrical socket YW4141AC

2-poleSchuko typesmart

Product description
2P+E 16 A 250 V AC German-standard connected socket (BTicino YW4141AC) for remote control and energy monitoring of electrical devices. Provides instantaneous, daily and monthly consumption measurements and configurable notifications. Suitable for devices up to 16 A (3680 W) with overload protection. Integrates in a 2-module support and fits a 40 mm deep flush-mount box. Installed using screw fixing and automatic clamp connections. Configurable blue LED indicates ON state and can be managed via the Home + Control APP. Can be associated with one or more wireless light controls. Power supply 110–230 V AC. Color: white.

Features

• Type: 2P+E German-standard connected socket
• Remote control of electrical devices
• Consumption monitoring: instantaneous, daily, monthly
• Configurable notifications
• Compatibility: devices up to 16 A / 3680 W (with overload protection)
• Integration: fits 2-module support; suitable for 40 mm deep box (replacement of existing socket)
• Fixing: screw fixing
• Connection: automatic clamps
• Indicator: configurable blue LED (lights when socket is ON); manageable via Home + Control APP
• Can be associated with one or more wireless light controls
• Color: white

Technical specifications

• Model: YW4141AC
• Brand: BTicino
• Rated voltage: 110–230 V AC
• Input current: 16 A
• Rated power: 3680 W
• Modules required: 2
• Series: Light Now
• Installation depth: suitable for 40 mm deep box
• Fixing: screw fixing
• Connections: automatic clamps
• Indicator: configurable blue LED (ON when socket is ON)
• Functions: remote control, consumption monitoring (instantaneous/daily/monthly), configurable notifications
• Compatibility: electric devices up to 16 A (3680 W) with overload protection
