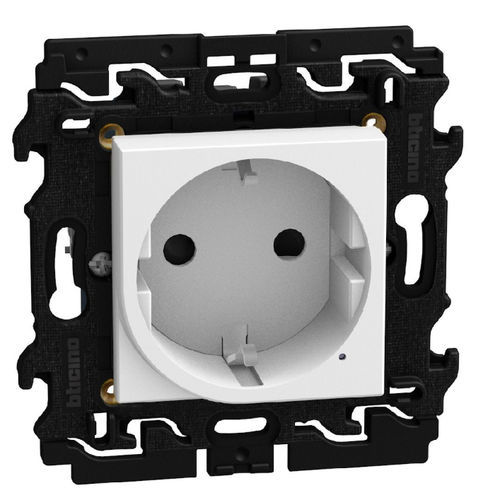

Built-in electrical socket YW4142AC

2-polewith earthing contactsmart

Description
This 2P+E connected socket for French/Belgian standard enables remote control and energy monitoring of connected appliances. It reports instantaneous, daily and monthly consumption, and can send configurable notifications. Compatible with devices up to 16 A (max 3680 W) when overload protection is active. The unit is integrated into a 2-module support for installation in a 40 mm deep box. It features screw fixing, automatic clamp connections and a configurable blue LED indicator controllable via the Home + Control APP. It can be associated with one or more wireless lighting controls. Power supply: 110-230 V a.c. - 2 modules - white

Technical features (table)
Brand: BTicino
Rated voltage: 110-230 Vac
Input current: 16 A
Rated power (W): 3680 W
Modules: 2
Series: Light Now

Technical specifications

• Type: 2P+E connected socket for French/Belgian standard
• Rated voltage: 110-230 V a.c.
• Nominal voltage on product label: 250 V a.c.
• Rated current / Input current: 16 A
• Rated power: up to 3680 W (compatible with devices up to 16 A) with overload protection
• Power supply: 110-230 V a.c.
• Modules: 2-module support (integrated), suitable for replacement in a 40 mm deep flush-mounted box
• Installation: screw fixing; electrical connection via automatic clamps
• Indicators: configurable blue LED that lights when the socket is ON; controllable via app
• Functions: remote control of connected devices; energy monitoring (instantaneous, daily, monthly); configurable notifications
• Compatibility: can be associated with one or more wireless light controls
• Colour / Finish: white
