Medium-voltage switchgear ABSDLinsulatedvacuumair-insulated
Add to favorites
Compare this product
Characteristics
- Electrical characteristics
- insulated, medium-voltage
- Configuration
- air-insulated, SF6 gas-insulated, SF6, vacuum
- Applications
- circuit breaker, power distribution
- Other characteristics
- modular, monobloc
- VAC
Min.: 15,000 V
Max.: 20,000 V
Description
Product description

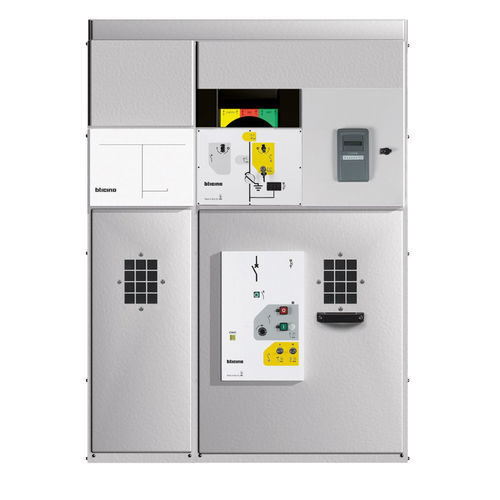

Electrical panel for transformer protection integrating an SF6-insulated disconnect switch and a vacuum circuit breaker. Bottom cable entry and bottom cable exit allow direct routing of power cables. Datalogger included for event and parameter recording. Suitable for 15-20 kV distribution systems and available in modular and monobloc configurations.
Key features
Range
Technical features
Brand: BTicino
Rated voltage: 15-20 kV
Height: 1.68 m
Width: 1125 mm
Depth: 840 mm
Series: QMT
Documentation
DWG drawing available.
Electrical panel for transformer protection integrating an SF6-insulated disconnect switch and a vacuum circuit breaker. Bottom cable entry and bottom cable exit allow direct routing of power cables. Datalogger included for event and parameter recording. Suitable for 15-20 kV distribution systems and available in modular and monobloc configurations.
Key features
- SF6-insulated disconnect switch
- Vacuum circuit breaker
- Bottom cable entry
- Bottom cable exit
- Datalogger included
Range
- Modular switchboards with air-insulated compartments
- Ready-to-use monobloc switchboards
- Protective relays and accessories
Technical features
Brand: BTicino
Rated voltage: 15-20 kV
Height: 1.68 m
Width: 1125 mm
Depth: 840 mm
Series: QMT
Documentation
DWG drawing available.
Catalogs
No catalogs are available for this product.
