Hydrocarbon filter-dryer FR series

liquidfor solidsfor clean rooms

Product overview

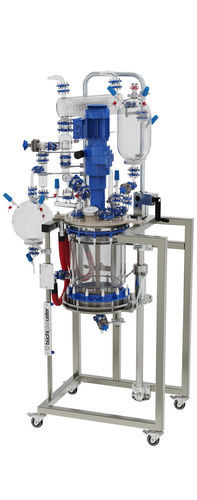

Filter reactors combine a stirred reactor and an integrated Nutsche filter in a single unit for pilot plants and kilo labs. Available volumes: 10 L, 30 L and 50 L. Modular glass upper section (GUS) and interchangeable bottom/cover options allow configuration to specific process requirements. Turnkey systems with vacuum‑tight buchiflex glass piping and PFA‑coated wetted parts. Certified to ATEX, CE and cGMP standards.

Key features

• Integrated Nutsche filter with swing‑out cake removal
• Multi‑stage PFA‑coated stirrer and dry‑running mechanical seal
• Manual 2‑step lowering device for vessel and bottom plate
• Heating/cooling jacket, TCU connection ports and heating hoses
• Four standard GUS configurations; customizable and automatable

Technical data (table)
Filtration vessel: 10 L, 30 L, 50 L
Pressure FR 10: -1.0 (full vacuum) to +1.0 bar
Pressure FR 30 / FR 50: -1.0 (full vacuum) to +0.5 bar
Temperature range: -60 °C to +200 °C

Typical applications

• Chemical synthesis and cGMP API production
• Solid phase peptide synthesis (SPPS)
• Evaporation, precipitation and crystallization
• Filtration, washing and drying
• Cannabis solvent extraction and scale‑up

Standard package

• Glass vessel with heating / cooling jacket
• Stainless steel cover and bottom plate with PFA coating
• Dry‑running mechanical seal and ATEX‑rated stirrer drive
• PFA‑coated multi‑stage stirrer and PFA baffle with integrated Pt100 sensor
• Manual 2‑step lowering device and swing‑out filter cake removal
• Heating hoses, pull‑safe connection ports and vacuum‑tight buchiflex glass piping

Standard options

• Additional material options: stainless steel 1.4404 or Hastelloy® C22 for plates and stirrer
• Heatable bottom plate (stainless 1.4404 or Hastelloy® C22)
• Measurement and control: temperature, pressure/vacuum, stirrer speed, pH
• Sampling device and CIP spray nozzle
• Clean‑room design for HPAPIs and Glassprotect‑P coating

Technical specifications

• Model family: FR 10, FR 30, FR 50
• Materials: borosilicate glass vessel; stainless steel 1.4404 or Hastelloy® C22 options; PFA‑coated internals
• Sealing / drives: dry‑running mechanical seal; ATEX‑capable stirrer drive
• Design: modular GUS, swing‑out cake removal, manual 2‑step lowering device
• Accessories: TCU connections, buchiflex piping, CIP, sampling, automation
• Certifications: ATEX, CE, cGMP
