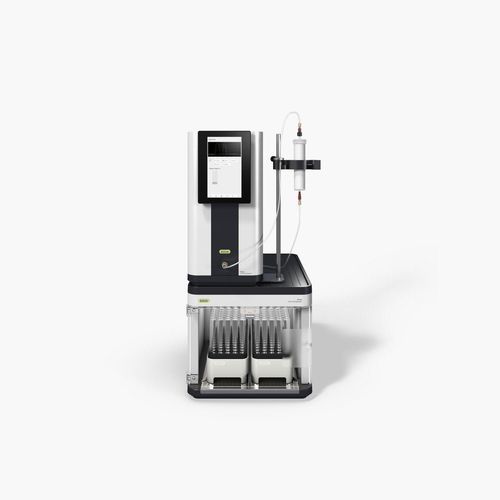

Flash chromatograph C-900

laboratoryUV/VIScompact

Overview
The Pure Essential Flash Chromatography System focuses on the essentials for any basic flash application. Designed for ease of use, modularity and a small footprint, it enables fast, safe and reproducible separations and can be extended with optional detectors and fraction collectors. The system supports automated sequences (priming, equilibration, sample loading, elution and rinsing) and saves run data for reporting.

Key benefits

• Easy to use: modern software for quick method programming and on‑the‑fly parameter adjustment.
• Modular and scalable: grows with your needs by adding detectors or fraction collectors.
• No‑frills chromatography: compact footprint for crowded labs while providing robust core functionality.

Adaptability

• Connects with a wide range of flash cartridges (from small to large prefilled cartridges) and user‑filled glass columns.
• Accepts glass columns (ID up to 100 mm, lengths up to 900 mm) and cartridge sizes covering typical flash scales (4–5000 g).
• Supports liquid or solid sample loading workflows.

Automation & operation

• Automated routines available for priming, equilibration, loading, elution and rinsing.
• Run data logging and reporting functionality for traceability.
• Intuitive control software enabling method programming and parameter tuning.

Options & expansion

• Optional UV detector module (Pure UV Detector C‑107) — available in configurations with fixed wavelengths.
• Optional Pure Fraction Collector (C‑106) for automated fraction collection to reduce solvent consumption and improve recovery.
• Additional cartridge holders, loading options and various vial/collection formats (volumes 5–1000 mL) to match your workflow.

Design & robustness

• Compact, stackable design for space‑saving placement in laboratories.
• Robust build elements such as steel pump head, sturdy fraction collector racks and a reliable cartridge holder.
• Accessible tubing and externally mounted detector flow cell for simplified maintenance and troubleshooting.

Caractéristiques / spécifications techniques

• Model: Pure Essential Flash Chromatography System
• Pump capability (flash mode): up to 300 mL/min (system typical configuration shown as 300 mL/min)
• Pressure range (flash mode): 0 – 50 bar (50 bar pump head)
• Detector (configurations): system sold with no built‑in VIS detector by default; optional VIS/UV detector available (example: 4 fixed wavelengths 254 nm, 275 nm, 325 nm, 365 nm for certain configurations)
• Fraction collector: optional (Pure Fraction Collector C‑106)
• Compatible cartridges: FlashPure prefilled cartridges (various stationary phases, particle sizes and geometries) and GlasPure glass columns (user‑filled) for sample amounts >300 g
• Glass column compatibility: inner diameter up to 100 mm, lengths up to 900 mm
• High‑pressure mixing chamber option: typical volumes 2.5–22 mL for solvent mixing (optional)
• Sample loading: liquid or solid loading supported; cartridge volumes/holders from small to large (5–1000 mL collection options)
• Automation: priming, equilibration, sample loading, elution and rinse sequences with run data logging
• Physical design: compact, stackable footprint; engineered for daily use
