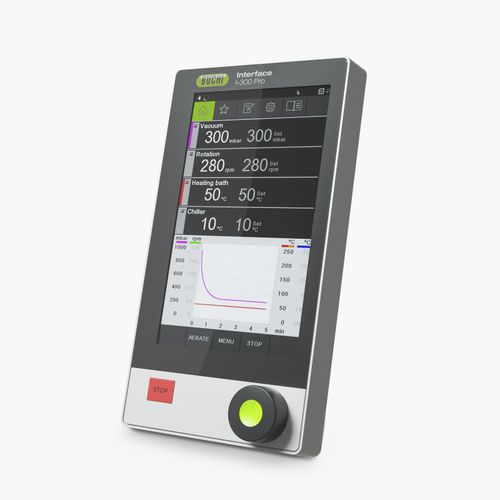

HMI with touch screen I series

touch screenwall-mountarm-mounted

Overview
The Interface I-300 and I-300 Pro are central control panels for rotary evaporation setups. They provide central regulation of vacuum and process parameters (I-300 / I-300 Pro), enable charting and recording of all process variables, support automatic distillations with AutoDest and foam-sensor-assisted operation, and offer flexible installation options for convenient remote or local control.

Compatibility
Compatible with Rotavapor® R-300, Vacuum Pump V-300 / V-600 and F-3XX Recirculating Chillers. Can be installed on the Rotavapor handle, on vacuum pumps, fume hood mount or lab bench/wall and also supports stand-alone operation with a house vacuum system.

Benefits

• Convenient: plug & play integration, central touchscreen control, free firmware updates and eSupport; I-300 Pro records process parameters for full traceability.
• Efficient: reduces downtimes with unattended operation; foam sensor and AutoDest enable automated handling of challenging or foaming samples.
• Versatile: multiple installation positions and stand-alone operation allow flexible lab layouts and control locations.

Key Features

• Automatic distillation: AutoDest function for automated distillation runs (including assistance for foaming samples).
• Charting: graphical display of process parameters to facilitate supervision of distillations.
• Intuitive navigation: water-resistant touchscreen, navigation knob, quick-access function keys and instant stop.
• Recording / Traceability: continuous recording of all process parameters; data export to SD card for further analysis.
• Remote control & monitoring: BUCHI Monitor App (iOS, Android, Windows) for live view, charting and push notifications; supports remote monitoring and eSupport workflows.
• Drying mode: alternating rotation direction with configurable intervals to improve drying of solids.
• Dynamic distillation: vacuum dynamically adjusted while chiller and bath reach set temperatures; start from solvent selection in the library.
• Favorites: save preferred solvents, leak test and other functions for quick access.
• Leak test: integrated system tightness check with displayed result.
• Sensor support: foam sensor possibility and AutoDest sensor for automatic distillations.

Included / Optional Capabilities

• Solvent library (I-300 Pro / I-300 variants with library enabled).
• Method programming (available on I-300 Pro where indicated).
• Eco mode for energy saving (available on models supporting it).

Caractéristiques / spécifications techniques

• Product family: I-300 series (Interface I-300 and Interface I-300 Pro)
• Display (I-300 Pro): up to 7" touchscreen
• Display (I-300): LCD, 4.3 in
• Control: central vacuum and process parameter control for Rotavapor setups
• Recording/export: continuous parameter recording; export via SD card
• Remote: BUCHI Monitor App (live view, charting, push notifications)
• Automatic functions: AutoDest automatic distillation; dynamic distillation profile from solvent library
• Sensors: foam sensor support for foaming samples; leak-test function
• Installation options: on Rotavapor handle, on Vacuum Pump (V-300/V-600), mounted on fume hood or lab bench/wall; stand-alone operation with house vacuum
• Compatibility: Rotavapor® R-300, Vacuum Pump V-300 / V-600, F-3XX chillers
• Export & updates: firmware updates and eSupport (remote assistance) via BUCHI Cloud/Monitor ecosystem
