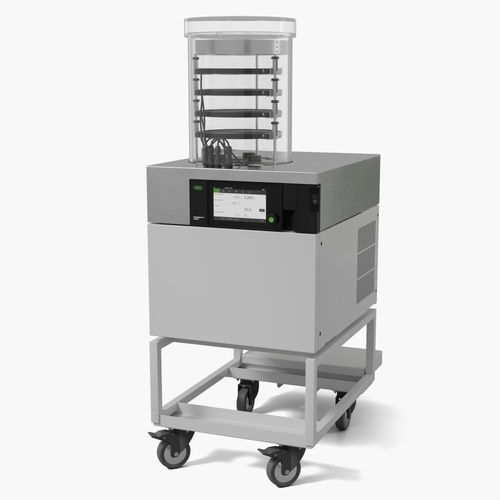

Process freeze dryer Lyovapor™ L-210

laboratoryfor the food industryfor nutraceutical products

Overview
Introducing the Lyovapor™ L-210, equipped with EcoStream™ and Infinite-Control™ technologies. The instrument is designed for reliable, sustainable and flexible freeze-drying workflows with advanced automation and modular configurations. It reduces drying time while minimizing environmental impact and ensures stable condenser performance down to -55 °C.

Key facts

• Condenser capacity: ≤ 6 kg
• Condensing capacity: ≤ 6 kg per 24 h
• GWP index: 3
• Lowest condenser temperature: -55 °C

EcoStream™ Innovation
The EcoStream™ cooling solution uses natural coolants to reduce environmental impact (low global warming potential). It reaches stable condenser temperature quickly, enables complete solvent collection (including large water-based samples up to 6 L) and supports sustainable operation without compromising cooling performance.

Modular design for maximum flexibility
The Lyovapor™ L-210 features a modular concept: it can be bench- or trolley-mounted, upgraded from Basic to Pro as needs evolve, and configured with a variety of drying chambers and accessories (manifolds, unheated or heated shelves, manifold racks) to cover many applications and sample formats.

Time-saving features

• Infinite-Control™: live graphical display of process parameters (chamber pressure, sample temperature, shelf temperature) on instrument display and software for continuous process monitoring.
• Advanced process analytics: pressure and temperature-based endpoint detection for primary and secondary drying.
• Method programming and sample-protective states: support fully automated freeze-drying runs and automatic protective mode if sample temperature exceeds set collapse temperature.
• Hot gas feature (on applicable configurations): accelerates melt-off on condenser coil to shorten defrost cycles.

Instrument configurations & key features

• Basic instrument: Dry liquids and solids in flasks and trays; stable condenser temperature for complete solvent collection; endpoint determination by pressure (suitable for many routine applications).
• Basic Defrosting: Basic configuration with defrosting option (hot gas defrost available on specific variants).
• Pro instrument: Advanced drying capabilities for vials and trays; precise residual moisture control, faster drying, programmable methods, heated shelves (up to 60 ± 1 °C), enhanced endpoint determination using pressure and temperature.
• Pro Defrosting: Pro configuration with defrosting functionality.
• Automated protection mode: Sample-protective state automatically activates if sample temperature rises above the set collapse temperature to safeguard precious samples.
• Drying accessories: Multiple drying chambers available (unheated/heated shelves, manifold racks with 12–24 valves), ampoule adapters, trolleys and other hardware to scale and customize drying workflows.
• Process tracking & analytics: Real-time tracking and automated endpoint detection for heated shelf applications and manifold processes using pressure and temperature difference tests.
• Control & UI: Instrument display provides intuitive controls and graphical process information; software integration for enhanced process control and logging.

Applications (examples)

• Biotechnology: drying/stabilization of biologically active products, microtiter plates and small flasks.
• Chemical R&D and QC: drying small to large quantities; sample preparation and stabilization.
• Education: teaching and research scale freeze-drying for training and experiments.
• Environmental analysis: sample preparation and stabilization for pollutant monitoring.
• Food & natural extracts: drying and solvent removal while preserving sensitive natural compounds (proteins, vitamins).
• Pharmaceutical: peptide/protein drying, formulation and QC applications.

Caractéristiques / spécifications techniques

• Model / denomination: Lyovapor™ L-210
• Condenser capacity: ≤ 6 kg
• Condensing capacity: ≤ 6 kg per 24 h
• Lowest condenser temperature: -55 °C
• GWP index (refrigerant impact): 3
• Drying chamber types: manifold configurations; unheatable and heatable shelf options
• Heatable shelf temperature (Pro configurations): up to 60 ± 1 °C
• Defrosting: hot gas defrost available on defrosting variants
• Endpoint determination: pressure-based (Basic) and pressure+temperature-based (Pro)
• Vacuum control: Advanced vacuum control available (Pro)
• Touch screen: 4.6 in display (instrument interface)
• Stoppering: optional
• Product temperature sensor: optional
• Modularity: upgrade path from Basic to Pro, various drying chambers and manifold racks available
• Automation: method programming, sample-protective state, Infinite-Control™ live process visualization
