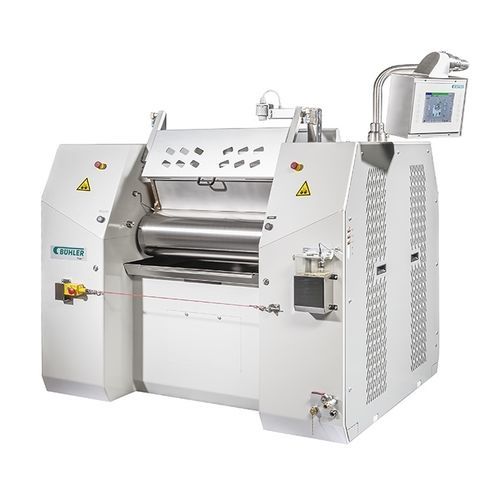

Paste mill Trias

for creamfor ceramicsfor ink

Overview
The Trias three-roll mill is engineered for efficient production of high-quality pasty products — metal pastes, printing and conductive inks, cosmetics, sealants and lubricants. The design combines high roll speeds, advanced cooling and precise gap control with optional automation for reproducible industrial processing.

Typical applications
Electronic materials

• Silver and aluminium pastes
• Metal pastes (Ni, Cu, Pt)
• Glass solder pastes
• Functional and conductive inks

Printing inks

• UV-curable inks
• Packaging inks
• Security inks
• Sheet-fed and web-offset inks

Cosmetics & Self-Care

• Lipstick
• Lip balm/gloss
• Sunscreen
• Foundations & BB creams
• Hair styling pastes & waxes

Functional materials

• Sealants and adhesives
• Lubricants
• Ceramic pastes
• High-performance composites

Key benefits

• Unmatched productivity: ultra-high roll speeds and superior cooling increase throughput.
• Superior flexibility: wide operating range (5–120 N/mm) and configurable design for diverse production needs.
• Maximum precision: control units with recipe storage, recipe repeatability and long-term production analysis.

Product features

• Precise gap control and advanced roll technology for gentle dispersion and high yield
• Superior roll cooling with upgrade options
• Digitally adjustable pneumatic roll-pressure system, suitable for cleanrooms and EX environments
• Advanced automation: touch-screen control, logic devices and data export for traceability
• Manufactured in Switzerland to meet high safety standards

Models & capacities

• Trias 300: batch sizes 0.5–75 kg
• Trias 600: batch sizes 2–150 kg
• Trias 800: batch sizes 20–800 kg

Technical specifications

• Model: Trias (three-roll mill)
• Roll pressure (linear load): 5 to 120 N/mm (P-rolls 90–120 N/mm)
• Operating viscosity range: very wide, suitable for low to high viscosity pastes
• Processable products: metal pastes, glass solder pastes, functional/ conductive inks, UV inks, cosmetics, sealants, adhesives, lubricants, ceramic pastes, composites
• Control & traceability: recipe storage, PLC/touch-screen, long-term data logging and export
• Options: automated scraper adjustment, zero-point setting, automatic feed, roll-cooling upgrades

Services & support

• Global service network, spare and wear parts
• Service contracts, reconditioning and upgrades
• Test & R&D facilities and application support
