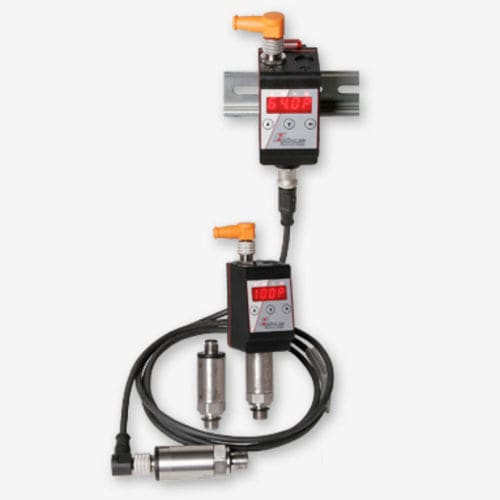

Diaphragm pressure switch Pressotronic 700

for waterwith digital displaycompact

Compact design Up to four programmable switching outputs Alternatively, an analogue output (configurable to current or voltage) plus up to six freely programmable switching outputs Characteristics of switching outputs configurable as window or hysteresis One switching output configurable as a frequency output (1-100 Hz) Direct or external display and control unit installation Virtually any cable length between measuring point and display Easy to read LED display with status of switching outputs, rotatable by 270° when installed directly Min/max value memory, logbook function The display unit has a menu structure following the VDMA (German Mechanical Engineering Industry Association) standard specification 245741 and provides freely programmable as well as continuous signals. The remote display is designed for simple installation on a series rail. Pressure ratings up to 600 bars / 8700 psi.
