Multi-fuel burner
natural gasdirect firednatural convection

multi-fuel burner
multi-fuel burner
multi-fuel burner
multi-fuel burner
multi-fuel burner
Add to favorites
Compare this product


Characteristics

Power source
natural gas, multi-fuel
Firing
direct fired
Convection
natural convection
Applications
conveyor, drum, pump
Other characteristics
low-emission
Power

Min.: 5,000 kW

Max.: 100,000 kW

Description

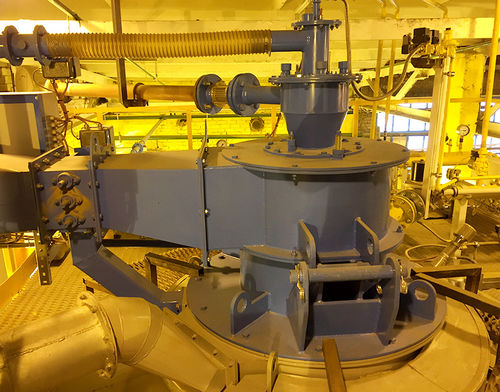

INDUSTRIAL COMBINATION BURNERS FROM BÜTTNER Combined operation: combustion of dust, oil and gas The industrial combination burner system BCB from Büttner functions as a flue gas generator for diverse industrial processes. Multi-fuel burners are commonly used to heat drum dryers or flash tube dryers. Büttner's multi-fuel burners are capable all-rounders and burn sander dust, screen dust and gaseous or liquid fuels. They can be operated with coal dust, heavy oil, light oil, natural gas and LPG. Büttner's combination burners make reliable, profitable and low-emission facility operations possible thanks to a flexible combination of combustion methods. Büttner's burner systems are each specially designed to meet the demands of the individual customer - within the performance range of 5 MW to 100 MW. Depending on the design, the burners have a gas train, an oil pump and metering station, as well as a dust metering and conveyor station. The entire operation is fully automatic, including adjustments to the optimal air-fuel ratio, and regulated electronically depending on the load requirement. The entire system, including all main and auxiliary units and all components for the feeding, regulation, and metering of fuel, meet the most current technical safety requirements. In particular, this concerns the flame monitoring system, which employs type tested UV and IR flame sensors.
