Pt100 calibration simulator 4506, 4506 S
precision

Pt100 calibration simulator
Pt100 calibration simulator
Add to favorites
Compare this product


Characteristics

Options
precision, Pt100 calibration

Description

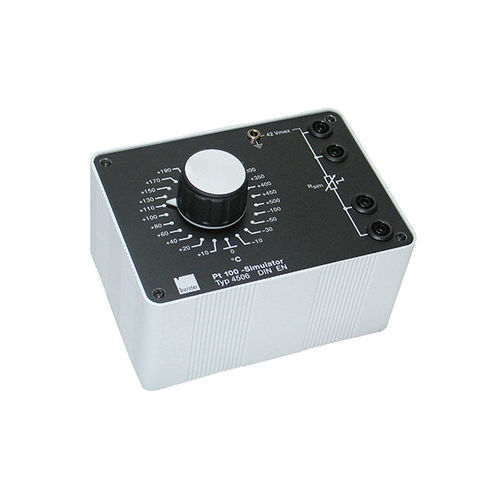

Precision PT100 simulator - Model 4506, 4506 S The precision Pt100 simulator is used wherever measuring instruments or controlling systems have to be tested or calibrated with great precision. The standard version model 4506 simulates 24 set temperature values. Totally different temperature ranges are required in the case of special applications, such as in the food industry, the medical science etc. Model 4506 S is recommended for these applications and can be fitted with 24 temperature values according to customer specifications. A distinctive feature of these simulators is their simple operation. The resistance values required for simulation are directly set in °C. There is no need to use loof-up tables. Today in many cases a certificate is needed more than ever force measurements. This certificate is available under order code 45DKD-.. . The unit consits a high-quality switch with precision wire-wound resistors made of MANGANIN®. Installed in a handy and sturdy metal case. In DIN EN 6075 standard values for resistance thermometers (Pt100). 24 pre temperature values are simulated using the selector switch accordance with. The simulated resistance value, corresponding in its value to the individually set temperature, is picked up at the “RSim”output socket. The four-wire connecting system permits the connection of a separate current and voltage path. Therefore supply line resistance is eliminated and does not appear in the measurements. The 24 temperatures are chosen to provide several calibration points suitable for most measuring instruments. The resistors are carefully artificial aged before trimming.
