Industrial container 85PL series

protectionsafetystorage

Product overview
Waste oil containers are engineered for the safe recovery, storage and disposal of used oils in compliance with applicable regulations. Manufactured by rotational moulding in high-density polyethylene (HDPE), they offer a monolithic, joint-free structure, UV stabilisation and full recyclability. The patented Duplex double-chamber system (inner oil-tight container + outer protective chamber) ensures enhanced containment against spills and leaks.

Key features

• Material: UV-stabilised high-density polyethylene (HDPE), rotationally moulded
• Monolithic, joint-free construction (no welded seams)
• Patented Duplex double-chamber containment (inner + outer chamber)
• Supplied ready to use — no installation or assembly required

Available types

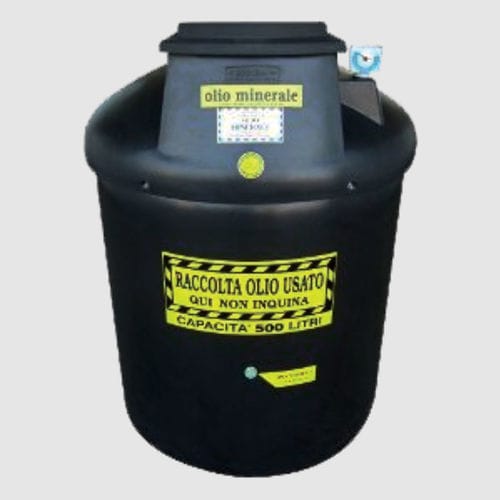

Mineral waste oil containers
The black HDPE mineral waste oil container is intended for mineral-based oils (engine oils and exhausted mineral, synthetic and semi-synthetic lubricants). Equipped with:

• Duplex double-chamber system
• Removable square drain filter basket
• Manhole with rectangular protective cover
• Visual level indicator for oil quantity monitoring

Hydraulic waste oil containers
The grey HDPE hydraulic waste oil container identifies hydraulic oil recovery. With a Duplex double-chamber structure and rotationally moulded construction, this version includes:

• Integrated removable drain filter basket in the manhole
• Pressure gauge / visual level indicator
• Dedicated compartment for filling and extraction of waste oil

Vegetable waste oil containers
The green HDPE vegetable waste oil container features a flat base and domed top, designed for exhausted vegetable oils. Manufactured with the Duplex double-chamber system, it is fitted with:

• Removable bottle-draining basket integrated in the manhole
• Visual level gauge
• Protective cover
• Compartment for filling and extraction

Regulatory compliance
The containers are manufactured in compliance with the following regulations:

• Legislative Decree 27 January 1992 no. 95
• Ministerial Decree 392/96 of 16 May 1996 – Art. 2
• Legislative Decree 3 April 2006 no. 152 and subsequent amendments

Operational advantages

• Maximum protection against spills and leaks
• Monolithic, joint-free structure for long-term reliability
• Double protective chamber for secondary containment
• Visual level control for quick inspections
• No installation required — ready for immediate use
• Suitable for regulated professional applications

Application sectors
Industry, mechanical workshops, automotive, catering, public bodies, recycling.

Versions available (table)
Model | Ø (mm) | H (mm) | Capacity (l)
85PL0260 | 800 | 1100 | 260
85PL0500 | 1000 | 1330 | 500
85PL1200 | 1400 | 1485 | 1200

Characteristics / technical specifications

• Manufacturing: rotational moulding
• Material: high-molecular-density polyethylene (UV-stabilised HDPE)
• Structure: monolithic, joint-free
• Containment: patented Duplex double-chamber (inner + outer)
• Recyclability: 100% recyclable
• Colour coding: black (mineral), grey (hydraulic), green (vegetable)
• Accessories (depending on version): removable drain filter basket, removable bottle-draining basket, manhole with protective cover, visual level indicator, pressure gauge (hydraulic), dedicated filling/extraction compartment
• Installation: none required, place on flat surfaces
• Intended use: recovery, storage and disposal of exhausted mineral, hydraulic and vegetable oils
• Standards: Legislative Decree 27/01/1992 n.95; Ministerial Decree 392/96 Art.2; Legislative Decree 03/04/2006 n.152 and subsequent amendments
• Typical models and dimensions: 85PL0260 (Ø 800 mm × H 1100 mm) – 260 l; 85PL0500 (Ø 1000 mm × H 1330 mm) – 500 l; 85PL1200 (Ø 1400 mm × H 1485 mm) – 1200 l
