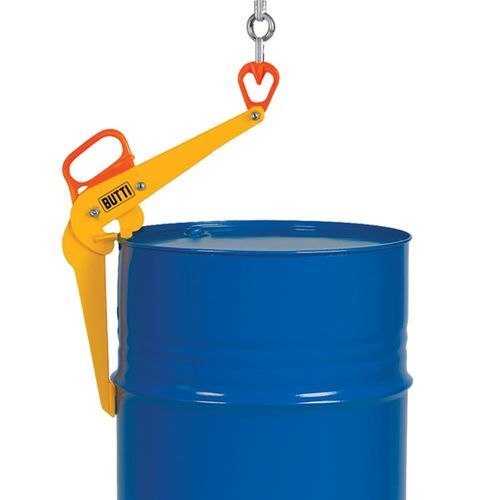

Manual drum lifter 927B1P

with gripping toolfor drumsindustrial

Product description
The manual drum clamp with grip on the upper edge is designed for the vertical lifting of standard metal drums using a hoist, overhead crane or jib crane. It provides a practical solution for occasional handling operations in industrial environments where a simple, lightweight and reliable system is required.

Main features

• Manual mechanical grip on the upper edge of the drum
• Suitable for standard metal drums
• Compatible with hoist, overhead crane or jib crane
• Lightweight, robust structure
• Simple, functional design
• Easy to use and low maintenance

Operation
The clamp is manually attached to the upper edge of the drum and, once connected to the lifting system, allows controlled vertical handling. It is particularly suitable for occasional operations or workshops where an automatic system is not required.

Operational advantages

• Cost-effective and functional solution
• Easy to use
• Compact dimensions
• Ideal for non-intensive handling
• Compatible with different lifting systems

Application sectors
Industry, workshops, warehouses, production plants.

Conformity
CE conformity.

Versions available
Model | L (mm) | P (mm) | H (mm) | Capacity (kg) | A (mm) | B (mm) | C (mm)
927B1P | 460 | 285 | 750 | 500 | 140 | 50 | 830

Technical specifications

• Model: 927B1P
• Dimensions (mm): L 460; P 285; H 750
• Load capacity: 500 kg
• Internal fork seat dimensions (mm): A 140; B 50; C 830
• Function: vertical lifting of standard metal drums (manual attachment to upper edge)
• Structure: lightweight, robust, simple design; low maintenance
