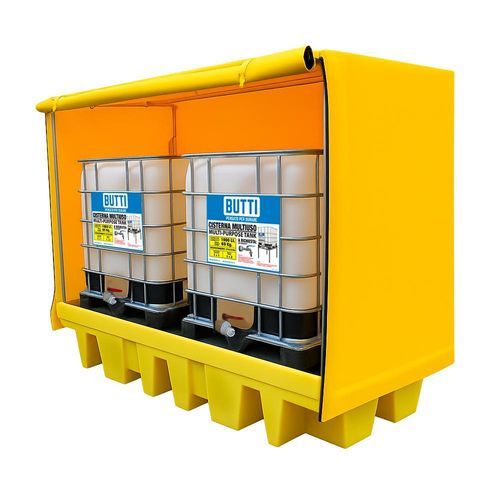

IBC container spill pallet 8070V2CPT

polyethylenepolypropylene

Product overview
Polyethylene spill containment pallets 8070V2CPT for IBC tanks with PVC cover are designed for the safe storage of IBC tanks containing acidic, alkaline or chemically aggressive substances. The integrated PVC cover sheet protects tanks and the containment pallet from rain, dust and weather agents, reducing accidental filling of the sump and improving organization of outdoor or exposed storage areas.

Structure and features
The containment pallet is manufactured in polyethylene (PE), a material resistant to many chemical agents and suitable for containing corrosive liquids. It includes a removable polypropylene grating that ensures correct support of tanks and facilitates inspection, cleaning and maintenance. The PVC cover provides weather protection while maintaining access to the tanks.

Main features

• Polyethylene (PE) structure resistant to chemical agents
• Suitable for acidic and alkaline substances
• Removable polypropylene grating
• Palletised structure for empty handling
• Easy cleaning, inspection and maintenance
• PVC cover sheet for protection against weather conditions

Operational advantages

• Chemical resistance appropriate for corrosive liquids
• Effective spill containment
• Easy handling when empty
• Fast and simple cleaning and inspection
• Suitable for storage in exposed outdoor areas

Technical note
The declared load capacity refers to a uniformly distributed static load.

Sectors of application
Chemical industry, laboratories, workshops, warehouses, maintenance, agriculture.

Table - Versions available (values in mm / l)
Model | L | P | H | Tank storage capacity | Volume (l)
8070V2CPT | 2560 | 1350 | 2080 | 2x1000 l | 1140

Characteristics / technical specifications

• Model: 8070V2CPT
• Material: Polyethylene (PE)
• Cover: PVC cover sheet (protects against rain, dust and weather agents)
• Support grating: Removable polypropylene grating (PP)
• Structure: Palletised for easy handling when empty
• Chemical compatibility: Suitable for acidic and alkaline / chemically aggressive substances
• Intended use: Containment and safe outdoor storage of IBC tanks
• Dimensions (model 8070V2CPT): L 2560 mm × P 1350 mm × H 2080 mm
• Tank storage capacity: 2 × 1000 L
• Containment volume (model 8070V2CPT): 1140 L
• Load: declared value for uniformly distributed static load
