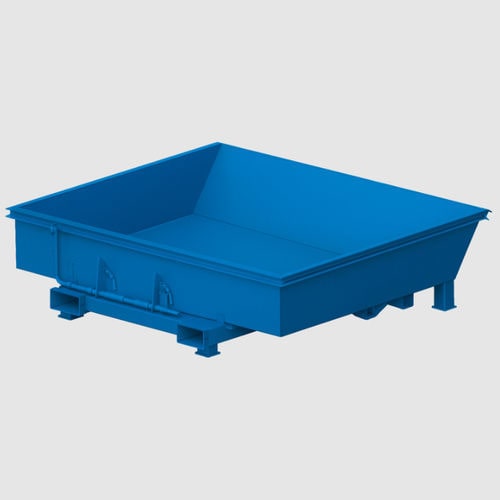

Steel tilt truck 77B0 series

for wastefor forklift trucksfor scrap

Product description
Tipping containers Pertutto for scraps and laser cutting are low-profile industrial containers designed for direct integration underneath shearing lines and laser cutting systems. They represent the ideal solution for the collection, containment and handling of heads, tails and metal scraps generated by automated sheet metal processing operations.
The optimized structural geometry allows the container to be positioned in confined spaces and beneath machinery, ensuring operational continuity and orderly scrap management directly along the production line. The structure is engineered to withstand high loads and the stresses typical of high-intensity industrial environments.
Manufactured to order, tipping containers Pertutto for laser cutting can be configured according to specific production requirements, ensuring adequate load capacity, structural robustness and compatibility with automatic discharge systems and internal logistics.

Main features:

• Low-profile design for integration under production systems
• Specific design for laser cutting and shearing processes
• Robust structure for the collection of metal scraps
• Compatibility with automatic discharge systems
• Suitable for handling in internal logistics environments
• Custom-made construction

Applications:

• Collection of metal scraps from laser cutting processes
• Handling of production heads and tails
• Integration into automated production lines
• Optimization of scrap flow within the production department

Working safely with the "SECURE SYSTEM" hydraulic cylinder
Butti offers the SECURE SYSTEM as an optional hydraulic cylinder for Pertutto tipping containers. The system provides gradual, progressive and shock-free tipping, preserving forklift truck bearings and preventing accidental container falls. The cylinder is installed in the lower part without increasing overall dimensions, ensuring maximum safety while maintaining operational compatibility.

Versions available (table):
Model | P1 (mm) | P2 (mm) | L (mm) | H1 (mm) | H2 (mm) | H3 (mm) | Load capacity (kg) | Volume (l) | A (mm) | B (mm) | C (mm)
77B0750 | 2000 | 1880 | 900 | 830 | 750 | - | 1000 | 750 | 192 | 92 | 600
77B0905 | 1750 | 1630 | 2000 | 500 | 330 | - | 1500 | 905 | 192 | 92 | 900
77B0305R | 2376 | - | 1490 | 86 | 245 | 912 | 600 | 305 | 172 | 72 | 620

Note: images and data shown are for illustrative purposes only. Tipping containers Pertutto are custom-made according to specific customer requirements to ensure optimal integration with production systems.
