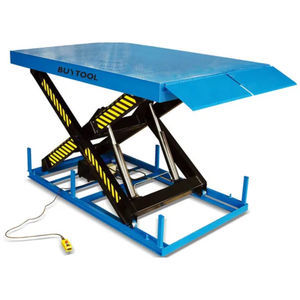

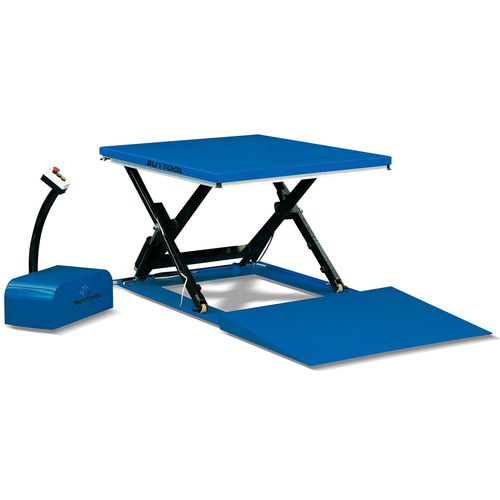

Scissor lift table HY1001
electrichydraulicstationary

Scissor lift table - HY1001 - Buytool Industrial Equipment Co., Ltd - electric / hydraulic / stationary

Scissor lift table - HY1001 - Buytool Industrial Equipment Co., Ltd - electric / hydraulic / stationary

Scissor lift table - HY1001 - Buytool Industrial Equipment Co., Ltd - electric / hydraulic / stationary - image - 2

Scissor lift table - HY1001 - Buytool Industrial Equipment Co., Ltd - electric / hydraulic / stationary - image - 3

Scissor lift table - HY1001 - Buytool Industrial Equipment Co., Ltd - electric / hydraulic / stationary - image - 4

Scissor lift table - HY1001 - Buytool Industrial Equipment Co., Ltd - electric / hydraulic / stationary - image - 5

Scissor lift table - HY1001 - Buytool Industrial Equipment Co., Ltd - electric / hydraulic / stationary - image - 6

Add to favorites

Compare this product

Go to the Buytool Industrial Equipment Co., Ltd website for more information

Characteristics

Technology

scissor

Operation

hydraulic, electric

Type

stationary

Application

loading

Other characteristics

low-profile

Capacity

1,000 kg
(2,204.6 lb)

Lowered height

Min.: 85 mm
(3 in)

Max.: 860 mm
(34 in)

Description

Table Length: - 1450mm Table Width: - 1140mm - Min. Height: - 85mm Max. Height: - 860mm - Material: - Q235 - Installation Type: - No Pit Packing Size: - 1500x1200x400mm - Color: - Yellow, Red, Blue, White, Green, Black, Etc. Highlight: - low profile electric scissor lift table, low profile electric pallet lift tables, electric pallet lift table Product Description Low-profile Hydraulic Electric Lift Table for Warehouse / 1000KG Capacity Load 85mm Lowered Height Features: Heavy duty design with larger platform. Loading ramp is a standard equipment. Oiless bushings on pivot points. These tables achieve a low closed height, eliminating the need for a pit installation. They are manufactured to all European safety standards including EN1570: 1999. Remote power pack with pedestal and controls, pretected to IP54. Description: Upper platform fitted with safety perimeter to prevent descent on contact with obstructions. 24V control box with UP and DOWN buttons and emergency stop. External power pack equipped with a relief valve against overloading and a compensated flow valve for controlling lowering speed. Power supply are AC308V/50HZ/3phase. Hose burst safety valve to stop the lift table lowering in case of hose breakage. Removable lifting eyes to facilitate handling and installation of the lift table. Mechanical safety chocks for maintenance.

VIDEO

Catalogs

No catalogs are available for this product.

See all of Buytool Industrial Equipment Co., Ltd‘s catalogs

Go to the Buytool Industrial Equipment Co., Ltd website for more information

Other Buytool Industrial Equipment Co., Ltd products

Electric Lift Tables

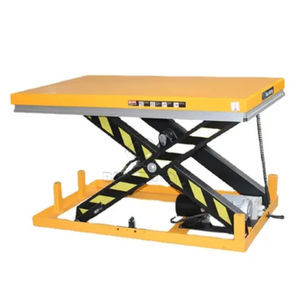

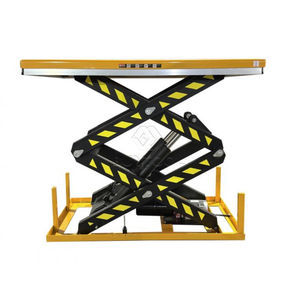

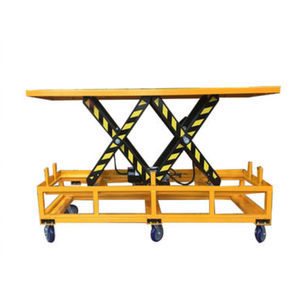

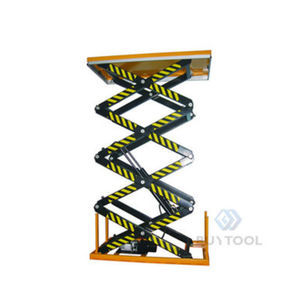

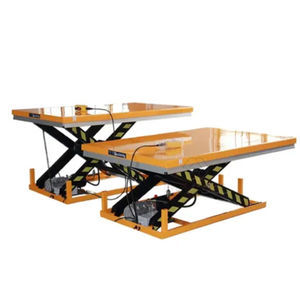

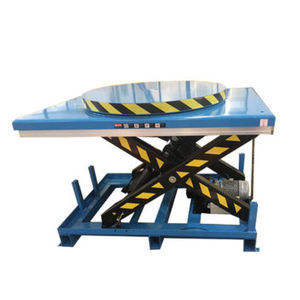

scissor lift table 1

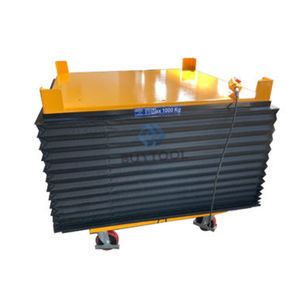

scissor lift table HW2001

electrichydraulicmobile

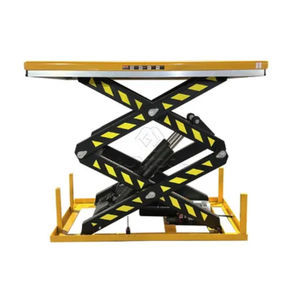

double-scissor lift table 1

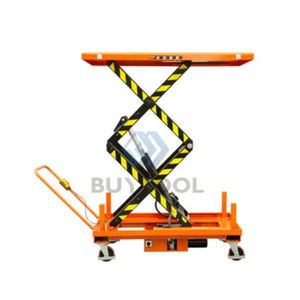

double-scissor lift table HD1000
