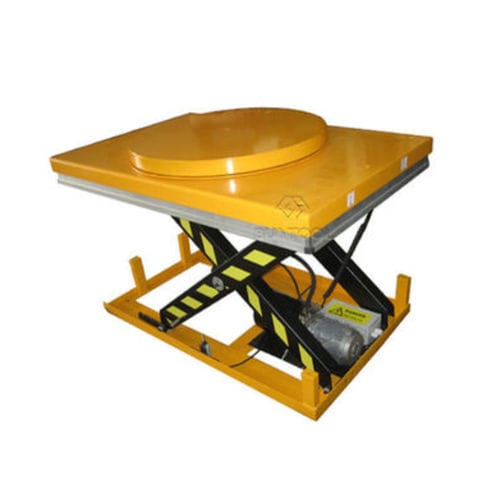

Scissor lift table HW1001-XZ
electrichydraulicstationary

Scissor lift table - HW1001-XZ - Buytool Industrial Equipment Co., Ltd - electric / hydraulic / stationary

Scissor lift table - HW1001-XZ - Buytool Industrial Equipment Co., Ltd - electric / hydraulic / stationary

Scissor lift table - HW1001-XZ - Buytool Industrial Equipment Co., Ltd - electric / hydraulic / stationary - image - 2

Scissor lift table - HW1001-XZ - Buytool Industrial Equipment Co., Ltd - electric / hydraulic / stationary - image - 3

Scissor lift table - HW1001-XZ - Buytool Industrial Equipment Co., Ltd - electric / hydraulic / stationary - image - 4

Scissor lift table - HW1001-XZ - Buytool Industrial Equipment Co., Ltd - electric / hydraulic / stationary - image - 5

Scissor lift table - HW1001-XZ - Buytool Industrial Equipment Co., Ltd - electric / hydraulic / stationary - image - 6

Add to favorites

Compare this product

Go to the Buytool Industrial Equipment Co., Ltd website for more information

Characteristics

Technology

scissor

Operation

hydraulic, electric

Type

stationary

Other characteristics

with rotary plate

Capacity

2,200 lb
(997.9 kg)

Lowered height

Min.: 11 in

Max.: 42 in

Description

Turntable Size: - 32" Dia. Table Dimensions: - 51" X 32" Inch - Motor Power: - 1.1kw - Input Phase: - Three Phase Input Voltage: - 220/380/460V AC - Input Frequency: - 50/60 Hz Color: - Yellow, Red, Blue, White, Green, Black, Etc. - Application: - Warehouse, Workshop, Building Material Shops Warranty Of Core Components: - One Year - HS Code: - 8428909090 Highlight: - powered rotatable electric lift table, scissor lift rotary table, electric rotating lift table Buytool Motorized Scissor Electric Lift Tables 360 Degree Rotary Round Stage Platform Technical Specifications: Capacity : 2,200 Pounds Raised Height : 41-1/2″ (Over Deck) Lowered Height : 10-1/2″ Vertical Travel : 30-1/5″ Power:Powered by a 120v AC electric over hydraulic power unit – base mounted. Controls:Push Button Coil Corded Pendant – Lift/Lower Paint:Safety Yellow Standard Features 360 Degree rotating top with heavy duty cam rollers and exclusive Roto-Bearings. Cylinders with internal stops, hard chrome plated, polished shafting hydraulic cylinder piston rods Surfaces degreased, descaled and finished with safety yellow enamel Integral gear pump with check valve, relief valve, solenoid valve Smooth steel top with yellow and black safety strips Control box NEMA constant pressure, magnetic backed S.A.E. hoses and fittings Internally mounted motor Includes hydraulic oil and filter
