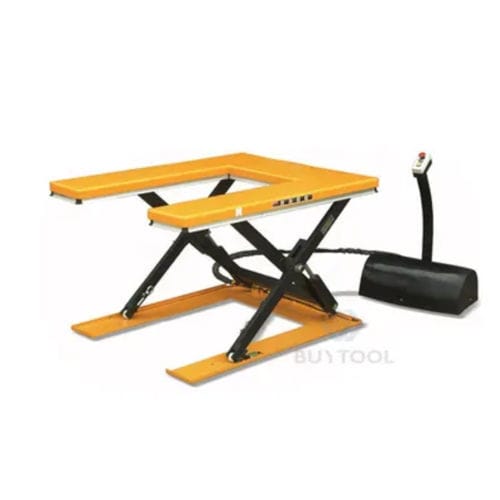

Scissor lift table HU1000
electricstationarylow-profile

Add to favorites

Compare this product

Go to the Buytool Industrial Equipment Co., Ltd website for more information

Characteristics

Technology

scissor

Operation

electric

Type

stationary

Other characteristics

low-profile, U-shape, low-profile

Capacity

1,000 kg
(2,204.6 lb)

Lowered height

775 mm
(31 in)

Lifting height

Min.: 85 mm
(3 in)

Max.: 860 mm
(34 in)

Lift time

Min.: 20 s

Max.: 65 s

Weight

Min.: 240 kg
(529.11 lb)

Max.: 400 kg
(881.85 lb)

Description

Name: - Low Profile Lift Tables - Table Dimensions: - 1450x1140mm - Motor Power: - 1.1kw - Color: - Yellow, Red, Blue, White, Green, Black, Etc. - Application: - Warehouse, Workshop, Building Material Shops Warranty Of Core Components: - One Year - HS Code: - 8428909090 Highlight: - u shaped static electric lift table 1 tonne Buytool, 1 tonne pallet scissor lift platforms Buytool, u shaped scissor lift table Buytool These tables achieve a low closed height,Pallet truck can be can be directly into the middle of the table, so as to upper and lower the tray. They are manufactured to all European safety standards including EN1570. Remote power pack with pedestal and controls,pretected to IP54. Upper platform fitted with safety perimeter to prevent descent on contact with obstructions. 24V control box with UP and DOWN buttons and emergency stop. External power pack equipped with a relief valve against overloading and a compensated flow valve for controlling lowering speed. Hose burst safety valve to stop the lift table lowering in case of hose breakage. Removable lifting eyes to facilitate handling and installation of the lift table. Oiless bushing on pivot points. Model Number: HU Lift Drive / Actuation: Electric Motor Power: 2.2kw Table Size: 1080*560mm Overall Dimensions: 1450*1140mm Certification: CE/TUV/SGS/ISO Warranty: 1 Year, 1year whole set After-sales Service Provided: Engineers available to service machinery overseas Product Name: U type lift table Load capacity: 1000kg, 1500kg u type lift table Color: yellow Packing Term: u shape scissor table 1pcs/pallet u shape scissor table Colored skill:Powder coating
