Scissor lift table HX serieselectricstationaryloading
Add to favorites
Compare this product
Characteristics
- Technology
- scissor
- Operation
- electric
- Type
- stationary
- Application
- loading
- Other characteristics
- low-profile, with ramp
- Capacity
500 kg, 1,000 kg, 1,500 kg
(1,102.3 lb, 2,204.6 lb, 3,306.9 lb)- Lifting height
Max.: 800 mm
(31 in)Min.: 25 mm
(1 in)
Description

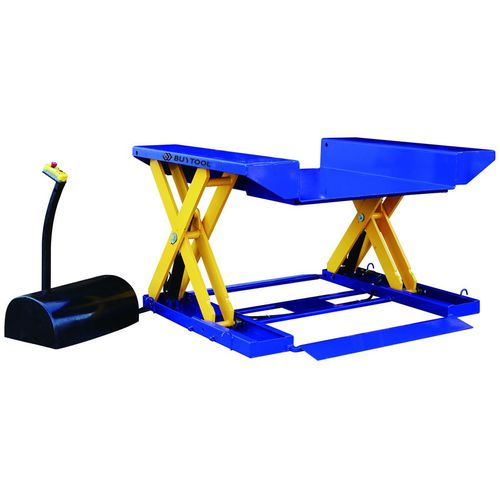

Ultra-low Electric Lift Table with Loading Ramp
25mm Height ! SUPER LOW PROFILE LIFTING TABLE
▲ Heavy duty design for large platform.
▲ These tables achieve a low closed height, eliminating the need for a pit installation.
▲ They are manufactured to all European safety standards including EN1570:1999.
▲ Remote power pack with pedestal and controls, IP54 protection.
▲ Upper platform fitted with safety perimeter to prevent descent on contact with obstructions.
▲ 24V control box with UP and DOWN buttons and emergency stop.
▲ External power pack equipped with a relief valve against overloading and a compensated flow valve for controlling lowering speed. Power supply are AC 380V/50HZ/3phase.
▲ Hose burst safety valve to stop the lift table lowering in case of hose breakage.
▲ Removable lifting eyes to facilitate handling and installation of the lift table.
▲ Oil-less bushings on pivot points.
▲ Loading ramp is a standard equipment.
