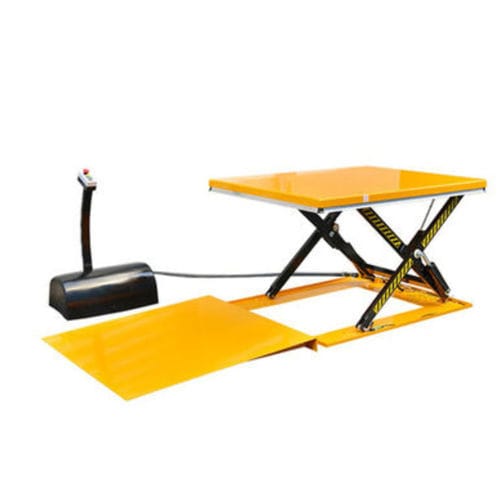

Scissor lift table HY1005

mechanicalstationaryloading

Material: - Alloy Steel Q345B Table Dimensions: - 1600x1000mm - Motor Power: - 1.1kw - Color: - Yellow, Red, Blue, White, Green, Black, Etc. - Application: - Warehouse, Workshop, Building Material Shops Warranty Of Core Components: - One Year - HS Code: - 8428909090 Highlight: - 48 x 48 scissor lift table Buytool, 85mm 48 x 48 Low Profile lift table, 48 x 48 Low Profile lift table for pallets Heavy duty design with larger platform. Loading ramp is a standard equipment. Oiless bushings on pivot points. These tables achieve a low closed height, eliminating the need for a pit installation. They are manufactured to all European safety standards including EN1570: 1999. Remote power pack with pedestal and controls, pretected to IP54. Upper platform fitted with safety perimeter to prevent descent on contact with obstructions. 24V control box with UP and DOWN buttons and emergency stop. External power pack equipped with a relief valve against overloading and a compensated flow valve for controlling lowering speed. Power supply are AC308V/50HZ/3phase. Hose burst safety valve to stop the lift table lowering in case of hose breakage. Removable lifting eyes to facilitate handling and installation of the lift table. Mechanical safety chocks for maintenance.
