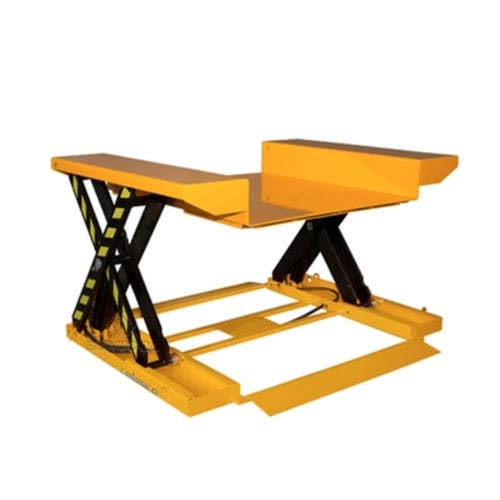

Scissor lift table HE1000

mechanicalstationaryloading

Material: - Alloy Steel Q345B Table Dimensions: - 1270x1100mm - Motor Power: - 1.1kw - Color: - Yellow, Red, Blue, White, Green, Black, Etc. - Application: - Warehouse, Workshop, Building Material Shops Warranty Of Core Components: - One Year - HS Code: - 8428909090 Highlight: - floor level pallet lift table, zero level lift table, floor level powered lift table Closed height only 10mm, no ramp needed for pallet. Allows you to use a pallet truck or a hand truck to roll a unit load on to the platform. Ideal for palletizing, depalletizing, loading and unloading conveyors and machines. Mechanical safety chocks for maintenance. These tables achieve a super low closed height, eliminating the need for a pit installation. They are manufactured to all European safety standards including EN1570: 1999. Remote power pack with pedestal and controls, protected to IP54. Upper platform fitted with safety perimeter to prevent descent on contact with obstructions. 24V control box with UP and DOWN buttons and emergency stop. External power pack equipped with a relief valve against overloading and a compensated flow valve for controlling lowering speed. Hose burst safety valve to stop the lift table lowering in case of hose breakage. Removable lifting hooks to facilitate handling and installation of the lift table
